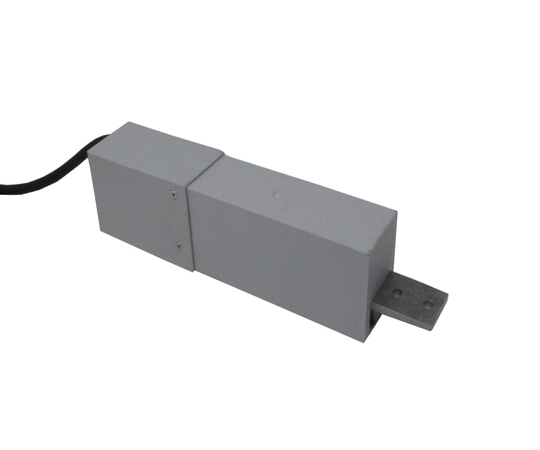

E120/230V Motor for Shutter Slide

Excl VAT £1,043.57

230V motor to be installed with Shutter Slide to alow for the automated movement of sliding shutters

  • Comes with built in control panel
  • Suitable for wooden and metal panels weighing up to 120kg each.
  • Can carry up to 3 shutters in one direction (single panel - 120kg, simultaneous action panel - 60kg, 2 door telescopic - 80kg and 3 door telescopic - 60kg)
  • Optional accessories include a remote control to allow doors to operate at the push of a button

  • Specifications

    More Information
    SKU E120/230V
    Fire Rated (Yes/No) No
    Max. Door Weight 120kg
    Fire Rating Not fire rated
    Max. Door Height 3000mm
    Max. Door Width N/A
    Door Material Wood or Metal
    Situation Exterior
    Door Thickness Range 35-48mm
Description PDF DXF DWG
100197
100197 121.58 KB 494.72 KB 692.49 KB

Product Description



Designed for use with our Shutter Slide system for the movement of automated sliding panels - our 230V motor offers an extremely energy efficient solution. The motor comes with a built in control panel but can be further upgrade to operate via remote control. The motor should be purchased with our E/CL10 clamp, E/PA10 pulley and E/BL belt.

The motor is able to cater for up to 3 panels sliding in one direction - please see maximum weight capcities below.

  • Single panel - 120kg per door
  • Simultaneous action panel - 60kg per door
  • 2 door telescopic - 80kg per door
  • 3 door telescopic - 60kg per door

To be Purchased With:

To be Used With:

More Information

More Information
SKU E120/230V
Fire Rated (Yes/No) No
Max. Door Weight 120kg
Fire Rating Not fire rated
Max. Door Height 3000mm
Max. Door Width N/A
Door Material Wood or Metal
Situation Exterior
Door Thickness Range 35-48mm
