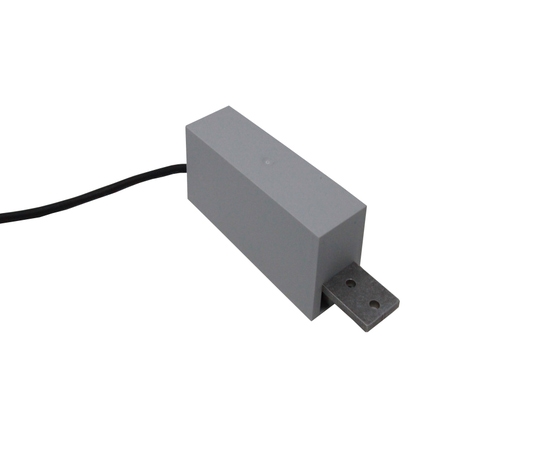

E120/24V Motor for Shutter Slide

24V motor to be installed with Shutter Slide to alow for the automated movement of sliding shutters

  • Comes complete with two wall mounted control panels
  • Suitable for wooden and metal panels weighing up to 120kg each.
  • Can carry up to 3 shutters in one direction (single panel - 120kg, simultaneous action panel - 60kg, 2 door telescopic - 80kg and 3 door telescopic - 60kg)

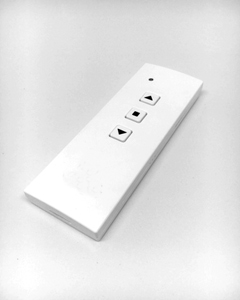

  • Optional accessories include a remote control to allow doors to operate at the push of a button
SKU:
E120/24V
Excl VAT £775.96
1
Description PDF DXF DWG
E120/24V - Motor
E120/24V - Motor 120.36 KB 484.45 KB 689.37 KB

Product Description

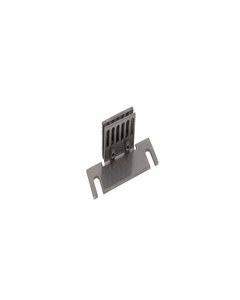

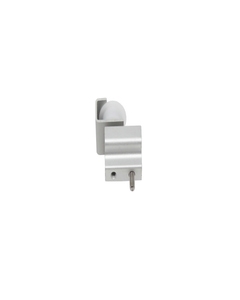

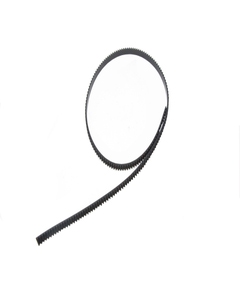

Designed for use with our Shutter Slide system for the movement of automated sliding panels - our 24V motor offers an extremely energy efficient solution. The motor comes complete with two wall mounted control panels but can be further upgrade to operate via remote control. The motor should be purchased with our E/CL10 clamp, E/PA10 pulley and E/B10 belt.

The motor is able to cater for up to 3 panels sliding in one direction - please see maximum weight capcities below.

  • Single panel - 120kg per door
  • Simultaneous action panel - 60kg per door
  • 2 door telescopic - 80kg per door
  • 3 door telescopic - 60kg per door

To be Purchased With:

To be Used With:

More Information

More Information
Fire Rated (Yes/No) No
Product Range Shutterslide
Track Length N/A
Max. Door Weight 120kg
Fire Rating Not fire rated
Max. Door Height 3000mm
Max. Door Width N/A
Door Material Wood or Metal
Situation Exterior
Door Thickness Range 35-48mm
