SC100 Easyclose Door Closer

Name: SC100 Easyclose Door Closer
SKU: SC100
Price: 119.11 GBP
Availability: InStock

Pneumatic door closer for sliding doors weighing up to 100kg

SKU:

SC100

Excl VAT £119.11

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Information

Maximum Door Width
1270mm

Documents

Attachments
Name	File size	PDF
Easyclose Fitting Instructions	333.94 KB	Download
Easyclose Fitting Instructions	605.71 KB	Download
Easyclose Datasheet	401.23 KB	Download

CAD Drawings

Description	PDF	DXF	DWG

SC100 - SLIDO CLOSE LVL A
SC100 - SLIDO CLOSE LVL A	134.30 KB	2.56 MB	383.29 KB

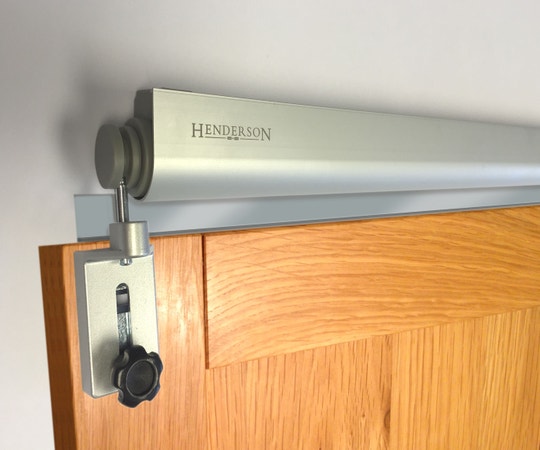

Pneumatic door closer for sliding doors weighing up to 100kg

Closes a sliding door automatically after opening
Door speed settings are easily adjustable and no power source required
Comes complete with fascia and is available in a chrome finish
Can be retrofitted to existing sliding door installations
Suitable for left or right hand openings

To be used in conjunction with our Senator, Phantom, Marathon and Husky Sliding systems, the Easyclose Door closer use pneumatic technology to automatically keep a door closed. Catering for doors weighing up to 100kg, the Easyclose Door Closer has a power force start of 1.5kgf and a power force extended of 4.1kgf. Suitable for both left and right hand openings, the system can be used with doors which have a maximum width of 1270mm.

More Information

More Information
Fire Rated (Yes/No)	No

Q&A

Question:

Hi
Will your sc100 easyclose be suitable for my narrow 70cm sliding doors.

Question by: Tim on 6 Sep 2024, 17:32

Answer:

Good morning,

The retracted length of our SC100 closer is 711mm so therefore would not be suitable for use with a 700mm door if being fitted to the door. Alternatively, you could fit the closer to the frame/pelmet. Please contact us for more information.

Thanks,
P C Henderson

Answer by: Kate Donkin (Admin) on 9 Sep 2024, 09:22

Question:

If I use a catch to hold the door open for long periods, say 1 hour or more, what affect will this have on the self closing mechanism, will the door self close after this long time period when the catch id disengaged and will it cause any long term issues with the system?

Question by: Kate Donkin on 22 Oct 2020, 01:00

Answer:

Good afternoon, Using a catch to hold the door open will not cause any problems to the functioning of the system. Many thanks, Kate Marketing Assistant

Answer by: admin admin (Admin) on 22 Oct 2020, 15:01
