Flexirol Multidirectional
For light weight and heavy weight wooden or aluminium doors requiring 90 or 135 degree movement
Contact a member of our sales team to enquire about this product
| Product | Max. Door Height | Max. Door Width | Max. Swing Door Width | Door Thickness Range | Max. Door Weight (2 Hangers per Door) | Door Material | Application |
|---|---|---|---|---|---|---|---|
| Flexirol Multidirectional 90 | 6000mm | 6000mm | 1200mm | 40 - 100mm | 100kg | Wood/Aluminium | Interior |
| Flexirol Multidirectional 135 | 6000mm | 6000mm | 1200mm | 40 - 100mm | 500kg | Wood/Aluminium | Interior |
| Document | Name | File size | |
|---|---|---|---|
|
Flexirol Multidirectional 135 for Glass Doors Datasheet | 446.71 KB | Download |
|
|
Flexirol Multidirectional 135 for Wooden and Aluminium Doors Datasheet | 289.08 KB | Download |
|
|
Flexirol Multidirectional 90 for Glass Doors Datasheet | 515.83 KB | Download |
|
|
Flexirol Multidirectional 90 for Wooden and Aluminium Doors Datasheet | 536.88 KB | Download |
|
|
Flexirol Multidirectional Brochure Page | 1.26 MB | Download |
|
|

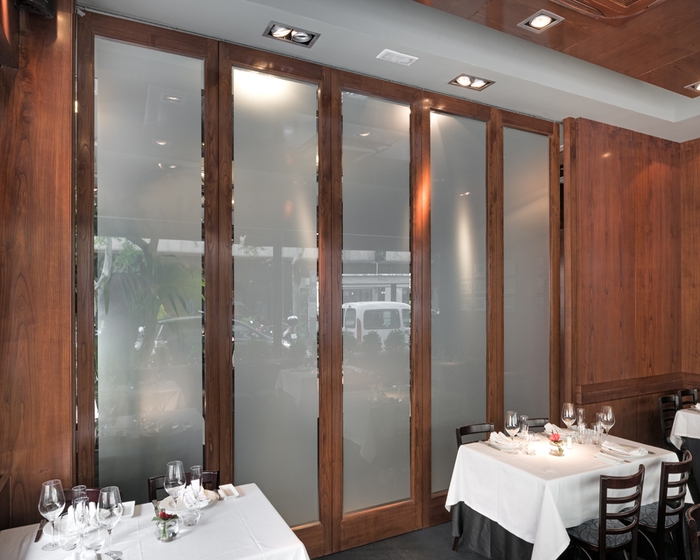

P C Henderson Case Study - Flexirol Multidirectional - De Maria Restaurant | 3.00 MB | Download |
| Description | DXF | DWG |
|---|
- For wooden and metal doors weighing up to 100kg and 500kg
- Ideal for shop fronts, internal room partitions, hotels, conference centres and showrooms
- Two product variants for 90 and 135 degree movement
- Stacking formation allows panels to be stored clear of the opening
- Bespoke system - can be made to measure
Flexirol Multidirectional offers an adaptable and tailor made solution for wooden and metal doors requiring 90 or 135 degree movements. The 90 degree system is designed for panels up to 100kg and the 135 degree system caters for doors up to 500kg.
Wide Range of Applications
The system is ideal for a range of commercial and residential applications such as shop fronts, internal room partitions, conference centres, showrooms and moveable walls.
Extremely Flexible
Flexirol Multidirectional offers extreme flexibility without compromising on the practicality of the application. When closed, the doors create two intimate and secluded areas. When open, the doors stack clear of the aperture to create large open spaces. A swing door can also be used to provide easy access between rooms when the doors are closed.
Tailor Made Solution
The system can be specified as individual components or can be made entirely bespoke to your exact requirements. For exterior applications please consult the P C Henderson technical team. For glass panels, please see Flexirol Multidirectional Glass.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Max. Door Width | 6000mm |
| Door Material | Wood or Metal |
| Situation | Interior |
| Application | Commercial |
| Door Thickness Range | 40 - 100mm |
Q&A
Q&A
-
H90/550 Flexirol Multidirectional 90 ElbowProduct code:h90-550-flexirol-muldirectional-90-elbowFrom £289.13
