Flexirol Multi Directional Glass
Contact a member of our sales team to enquire about this product
For glass doors weighing up to 500kg requiring a 90 or 135 degree movement
-
Specifications
More Information SKU flexirol-multidirectional-glass Fire Rated (Yes/No) No Glass Thickness 10 or 12mm Max. Door Weight 500kg Max. Door Width 1000mm Door Material Glass Situation Interior Application Commercial
| Product | Max Door Height | Max Door Width | Max Swing Door Width | Glass Thickness Range | Max Door Weight (2 hangers per door) |
|---|---|---|---|---|---|
| Flexirol Multidirectional Glass 90 | 4000mm | 1000mm (per 100kg of glass) | 1200mm | 10-12mm | 100kg |
| Flexirol Multidirectional Glass 135 | 4000mm | 1000mm (per 100kg of glass) | 1200mm | 10-12mm | 500kg |
| Document | Name | File size | |
|---|---|---|---|
|
Flexirol Multidirectional Glass Brochure Page | 463.93 KB | Download |
| Description | DXF | DWG |
|---|
1A 550 - BRACKET LVL A |
||||
| 1A 550 - BRACKET LVL A | 66.64 KB | 406.35 KB | 279.91 KB | |
3S 550 - BRACKET LVL A |
||||
| 3S 550 - BRACKET LVL A | 57.85 KB | 443.63 KB | 288.25 KB | |
555 - HANGER LVL A |
||||
| 555 - HANGER LVL A | 68.39 KB | 355.07 KB | 267.13 KB | |
556 - HANGER LVL A |
||||
| 556 - HANGER LVL A | 71.53 KB | 493.28 KB | 304.63 KB | |
HH3 301 - STOP LVL A |
||||
| HH3 301 - STOP LVL A | 56.04 KB | 307.83 KB | ||
- For glass panels weighing up to 500kg
- Doors can be stacked entirely clear of the opening
- Two product variants for 90 and 135 degree movement
- Bespoke system - can be made to measure

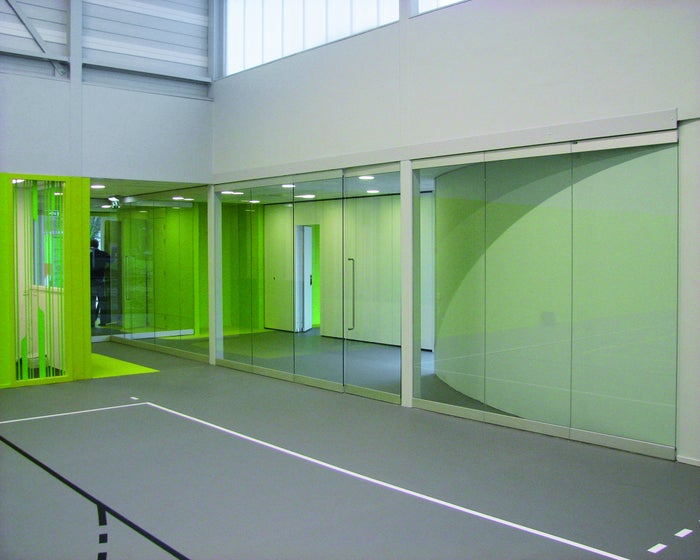

Flexirol Multidirectional Glass is designed for glass panels, in residential or commercial environments, requiring 90° or 135° flexible movement options. The system is ideal for shop fronts of internal room partitions and also benefits from a stacking formation, which allows the doors to be stored clear of the threshold. The system can be made entirely bespoke to your requirements, please contact our P C Henderson technical team for more information.
More Information
| SKU | flexirol-multidirectional-glass |
|---|---|
| Fire Rated (Yes/No) | No |
| Glass Thickness | 10 or 12mm |
| Max. Door Weight | 500kg |
| Max. Door Width | 1000mm |
| Door Material | Glass |
| Situation | Interior |
| Application | Commercial |
