Husky 120 Pro
High performing, professional sliding door kit for doors weighing up to 120kg
- Suitable for wooden and metal doors
- Exceptionally smooth running sliding door kit
- Extremely easy to install - Installation video available
- Available in kit pack format or can be specified as individual components for enhanced flexibility
- Optional accessories include a dual soft close kit
- Fittings kit is available for bi-parting door applications
| Product Code | Track Length | Max. Door Width | Max. Door Height | Door Material | Door Thickness Range | Max. Door Weight |
|---|---|---|---|---|---|---|
| HP120/15A | 1500mm | 800mm | 2700mm | Wood | 20 – 45mm | 120kg |
| HP120/18A | 1800mm | 950mm | 2700mm | Wood | 20 – 45mm | 120kg |
| HP120/20A | 2000mm | 1050mm | 2700mm | Wood | 20 – 45mm | 120kg |
| HP120/25A | 2500mm | 1250mm | 2700mm | Wood | 20 - 45mm | 120kg |
| HP120/30A | 3000mm | 1500mm | 2700mm | Wood | 20 – 45mm | 120kg |
| Document | Name | File size | |
|---|---|---|---|
|
Husky 120 Pro Data Sheet | 1.07 MB | Download |
|
|
Husky 120 Pro Fitting Instructions | 3.65 MB | Download |
|
|
Husky 120 Pro Brochure Page | 771.48 KB | Download |
|
|
Husky 120 Pro Quality Certificate | 556.15 KB | Download |
| Description | DXF | DWG |
|---|
Husky 120 Pro - Wooden Doors |
||||
| Husky 120 Pro - Wooden Doors | 150.51 KB | 2.20 MB | 502.49 KB | |
Husky 120 Pro - Metal Doors |
||||
| Husky 120 Pro - Metal Doors | 142.13 KB | 1.92 MB | 407.03 KB | |
102N Guide |
||||
| 102N Guide | 57.26 KB | 535.19 KB | 206.31 KB | |
280HP Anodised Aluminium Track |
||||
| 280HP Anodised Aluminium Track | 128.85 KB | 369.41 KB | 62.33 KB | |
281HP Face Fix Bracket |
||||
| 281HP Face Fix Bracket | 114.49 KB | |||
284HP Hanger |
||||
| 284HP Hanger | 137.14 KB | |||
601HP Clip Stop |
||||
| 601HP Clip Stop | 128.39 KB | |||
Husky 120 Pro Sliding Door Kit

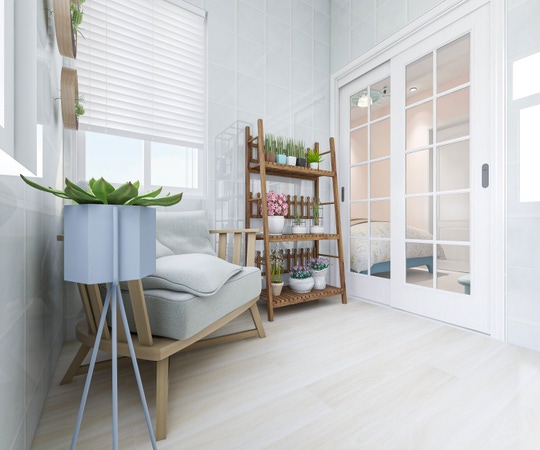

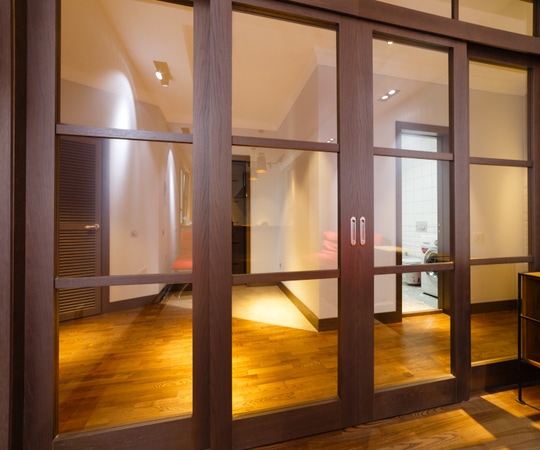

Husky 120 Pro is a high performing, professional sliding door hardware solution which caters for internal wooden or metal doors weighing up to 120kg each. The system has been designed with the utmost versatility and can cater for single, bi-parting, bypassing and soft closing doors. With this in mind, Husky 120 Pro is the perfect solution for wardrobes, passage doors and room dividers in both residential and commercial applications.
- Exceptionally smooth operation with low initial friction.

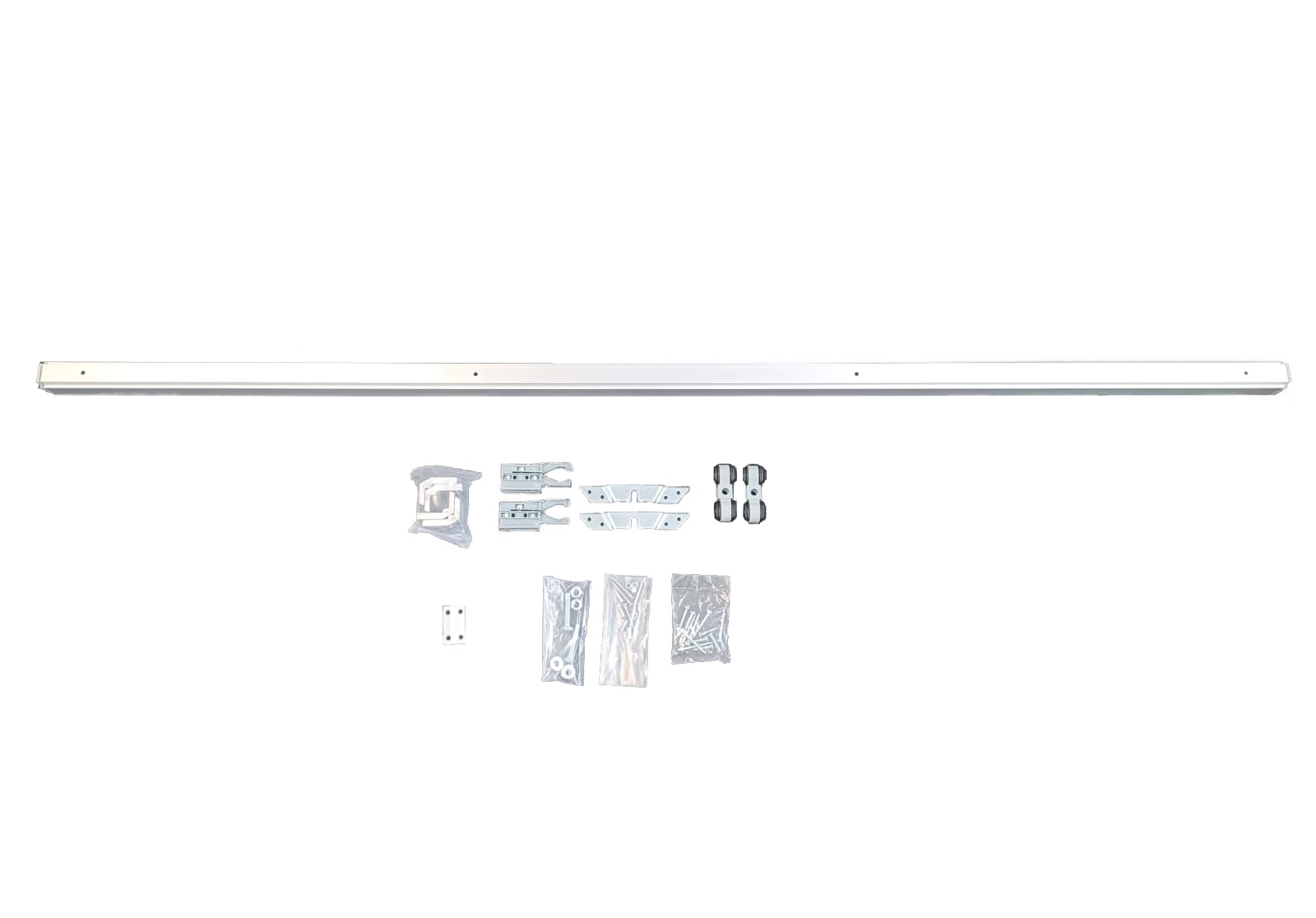

- Available in kit pack format which includes all components required for installation. Alternatively, components can be specified individually for enhanced flexibility.
- Tested to BS EN 1527 up to 100,000 cycles - the equivalent to opening and closing a door 5 times a day for 55 years.
- For bi-parting sliding doors, a fittings kit should be purchased in addition to the kit.
- 10 years manufacturer guarentee
Features & Benefits:

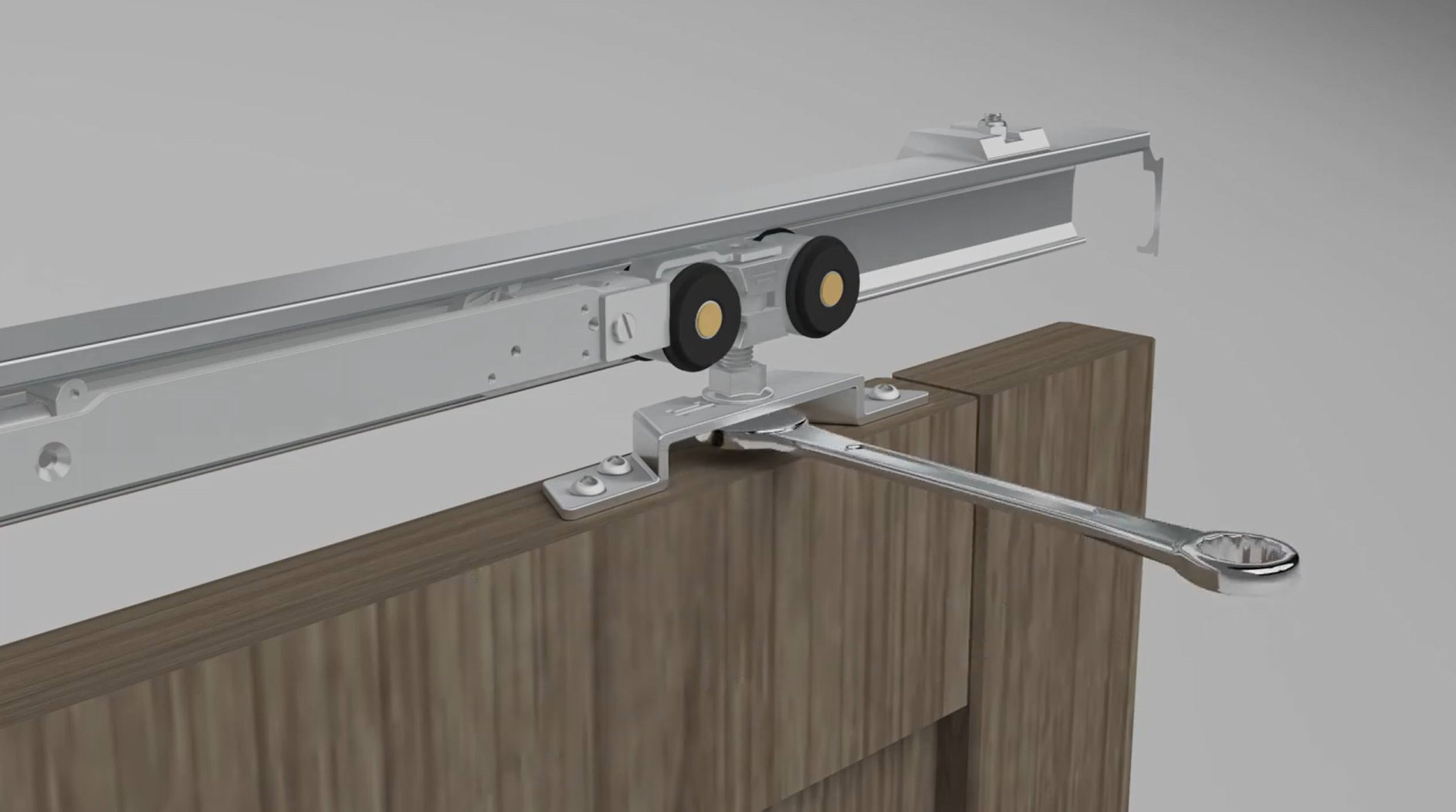

Easy Adjustments
Designed with ‘angled’ apron plates to allow for easy adjustments post installation.

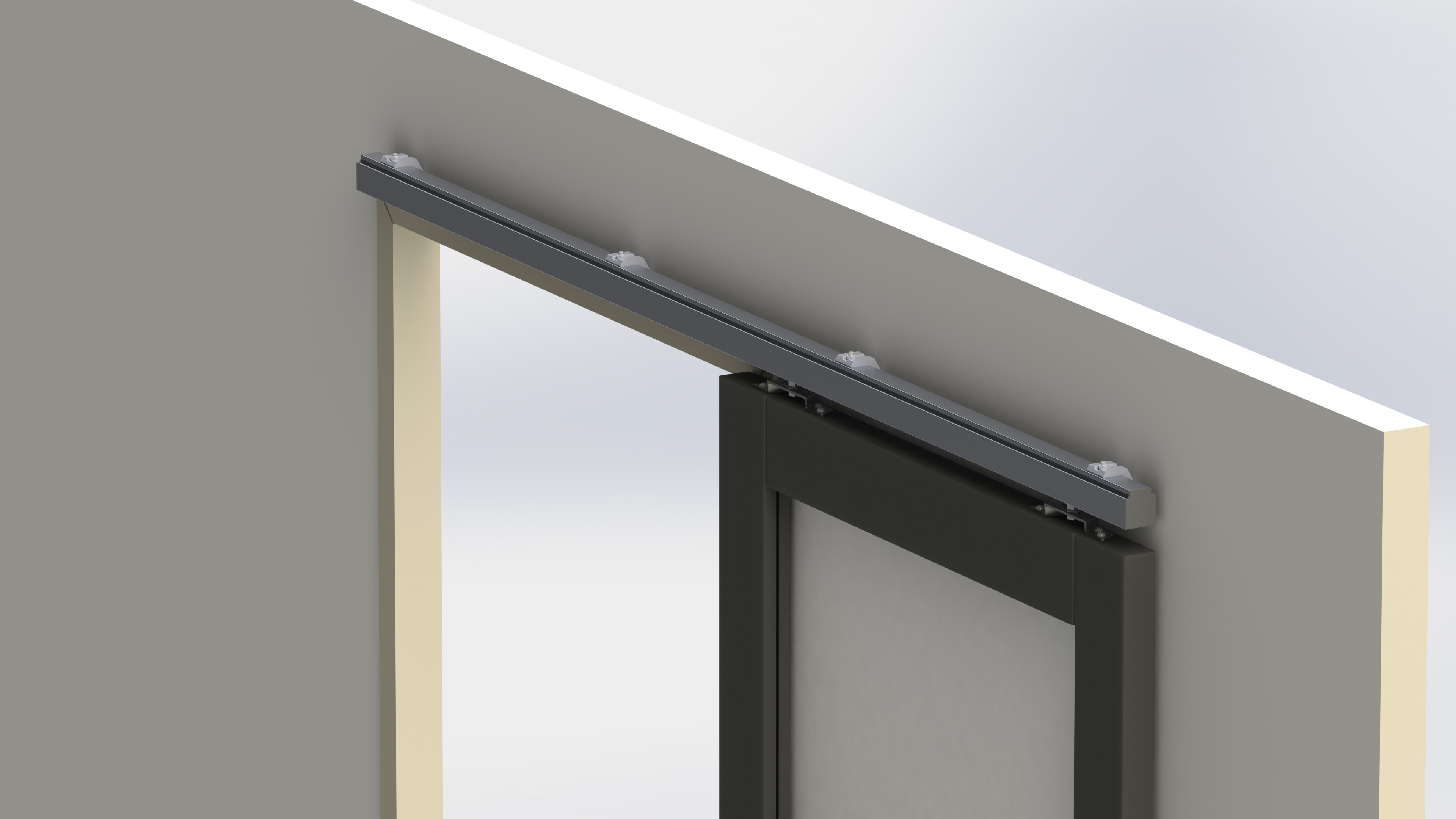

Concealed Wall Brackets
For face fixed applications, the brackets fix behind the track to allow for a discreet appearance.
Dual Soft Close
Our optional dual soft close gently brings the door into the open AND closed position, preventing slamming.

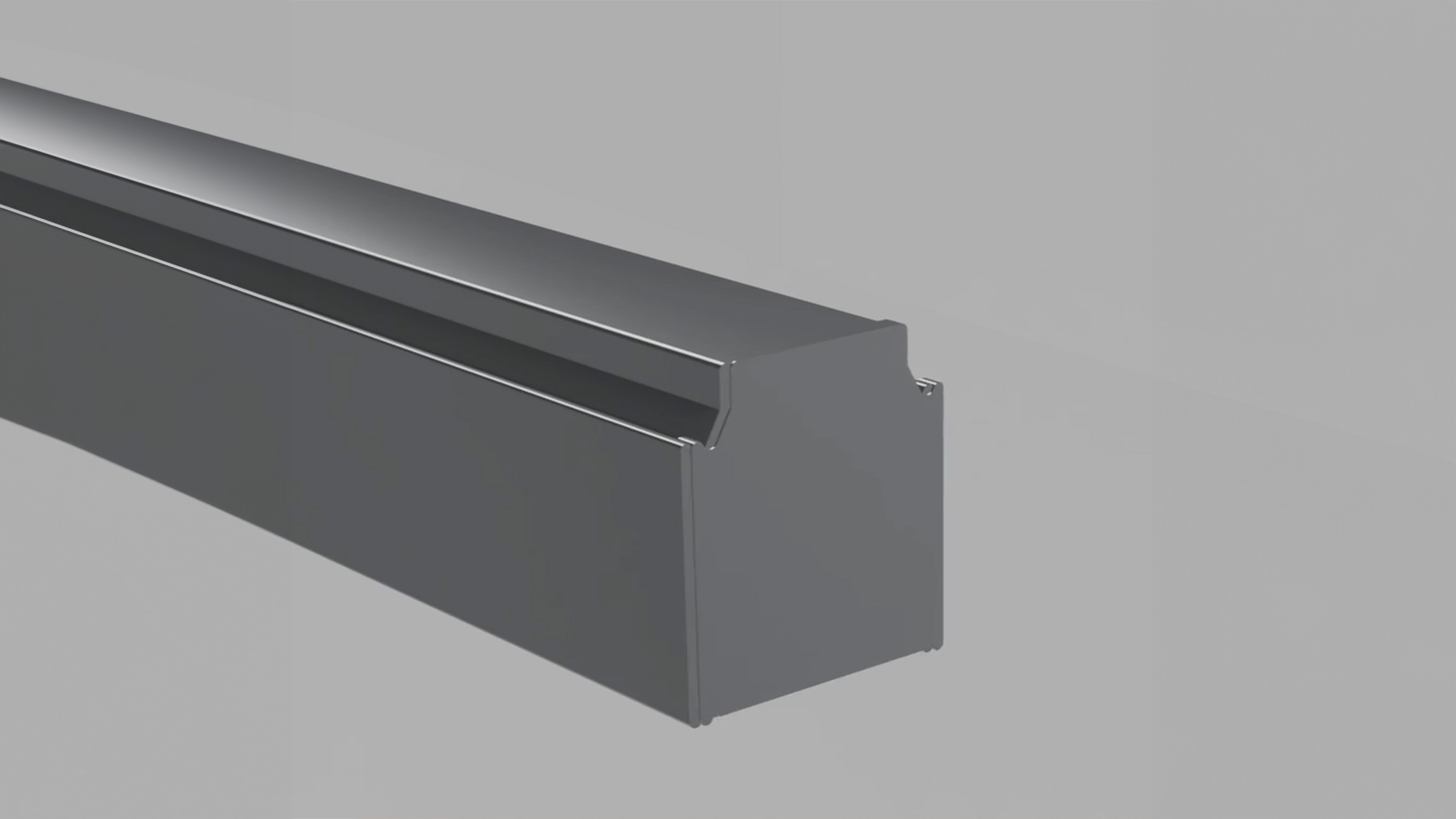

Durable Track
Designed with an anodised aluminium track and nylon rollers, Husky 120 Pro offers an exceptionally smooth running system.
Accessories:
Husky 120 Pro sliding door system is available with a range of optional accessories to enhance the overall performance of the system. Each accessory must be purchased in conjunction with the Husky 120 Pro kit.

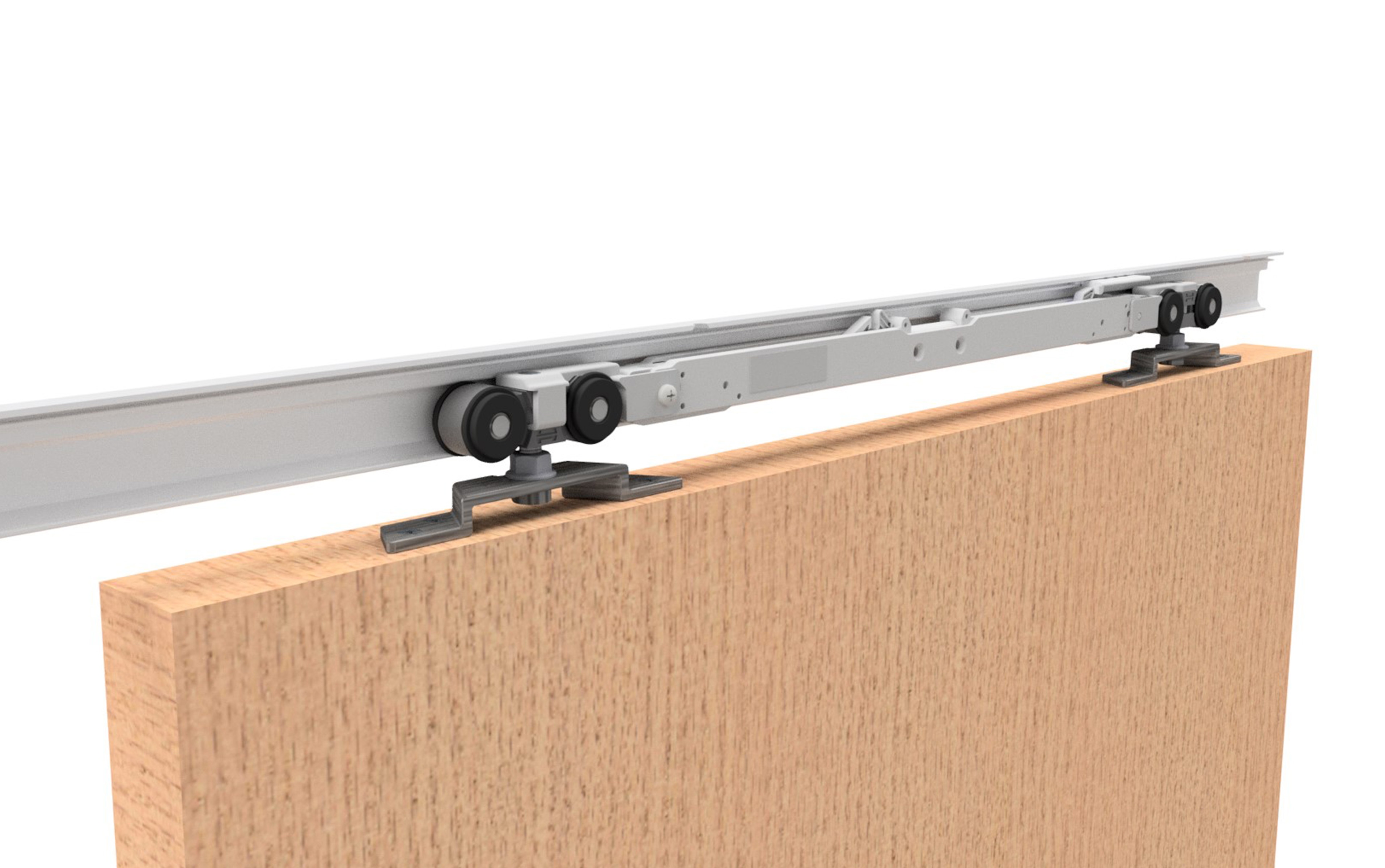

The soft close gently decelerates the doors into their final open AND closed position, offering anti-slamming properties which increases product longevity.

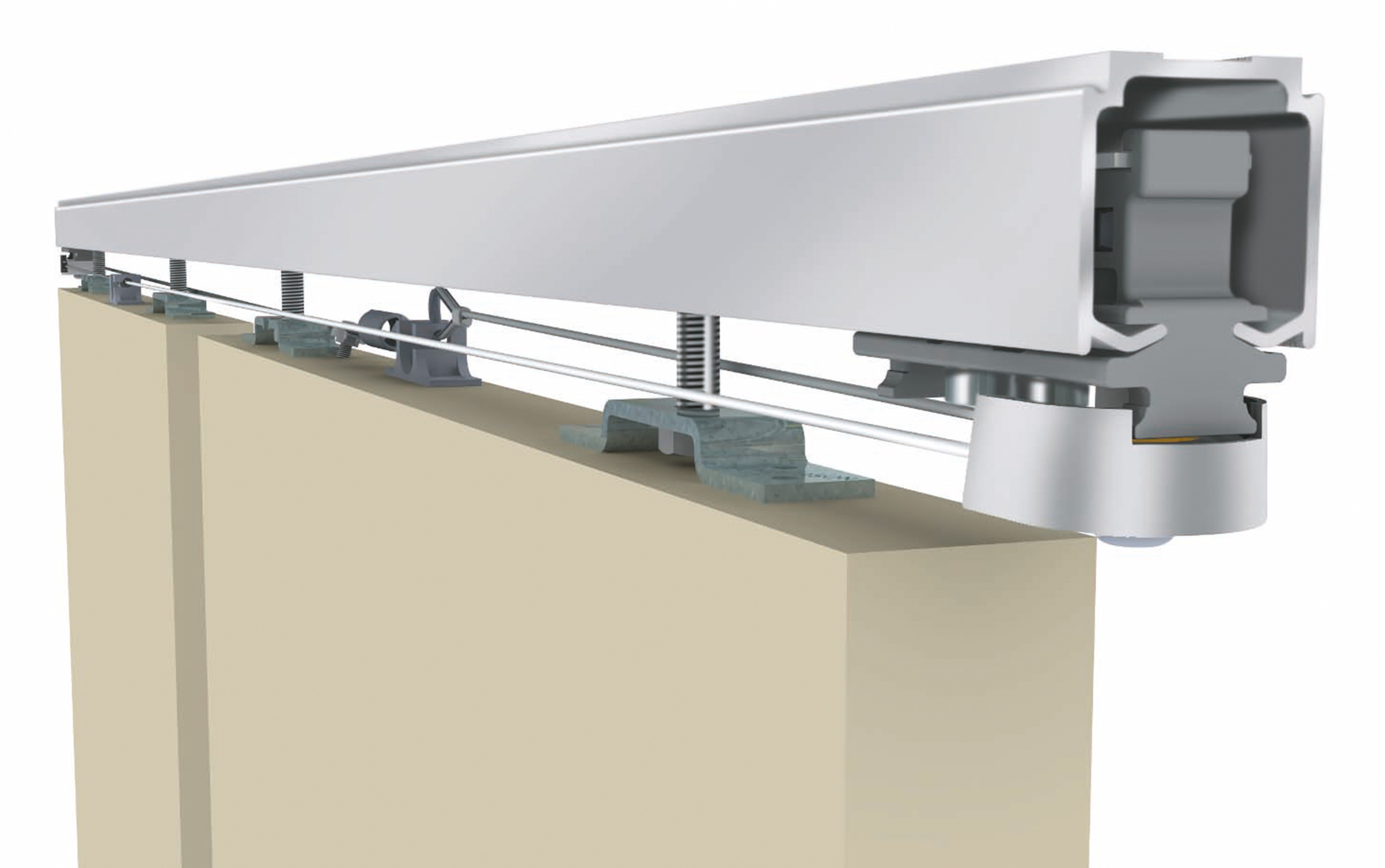

Suitable for bi-parting sliding door applications, our simultaneous action kit allows for the easy movement of both doors. Simply open or close one door and the other will move simultaneously.

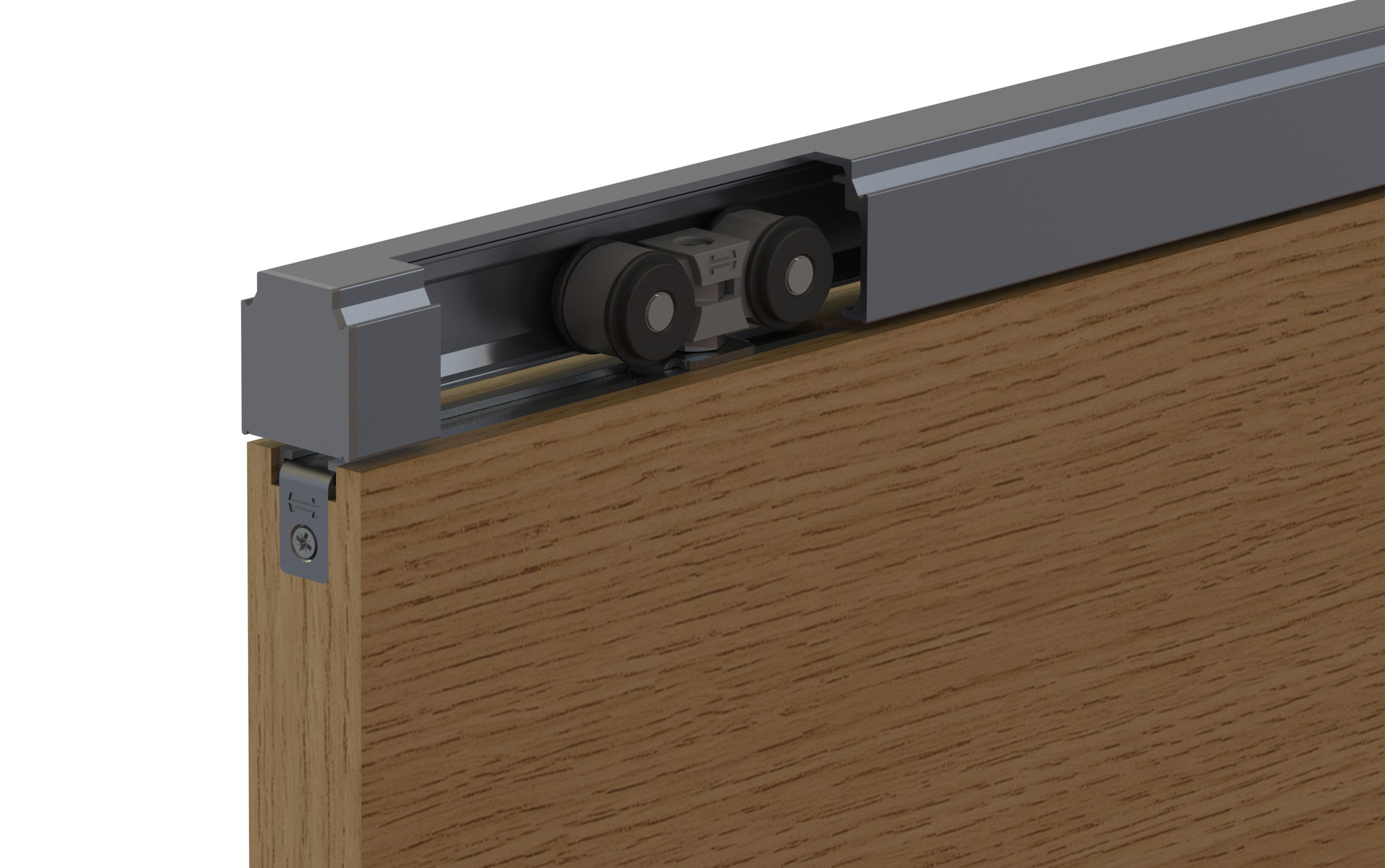

Compact 120 has been designed with flush components which are routed into the top of the door, reducing the clearance between the track and top of the door to 2mm - perfect for applications with restricted headroom or for floor-to-ceiling sliding doors.

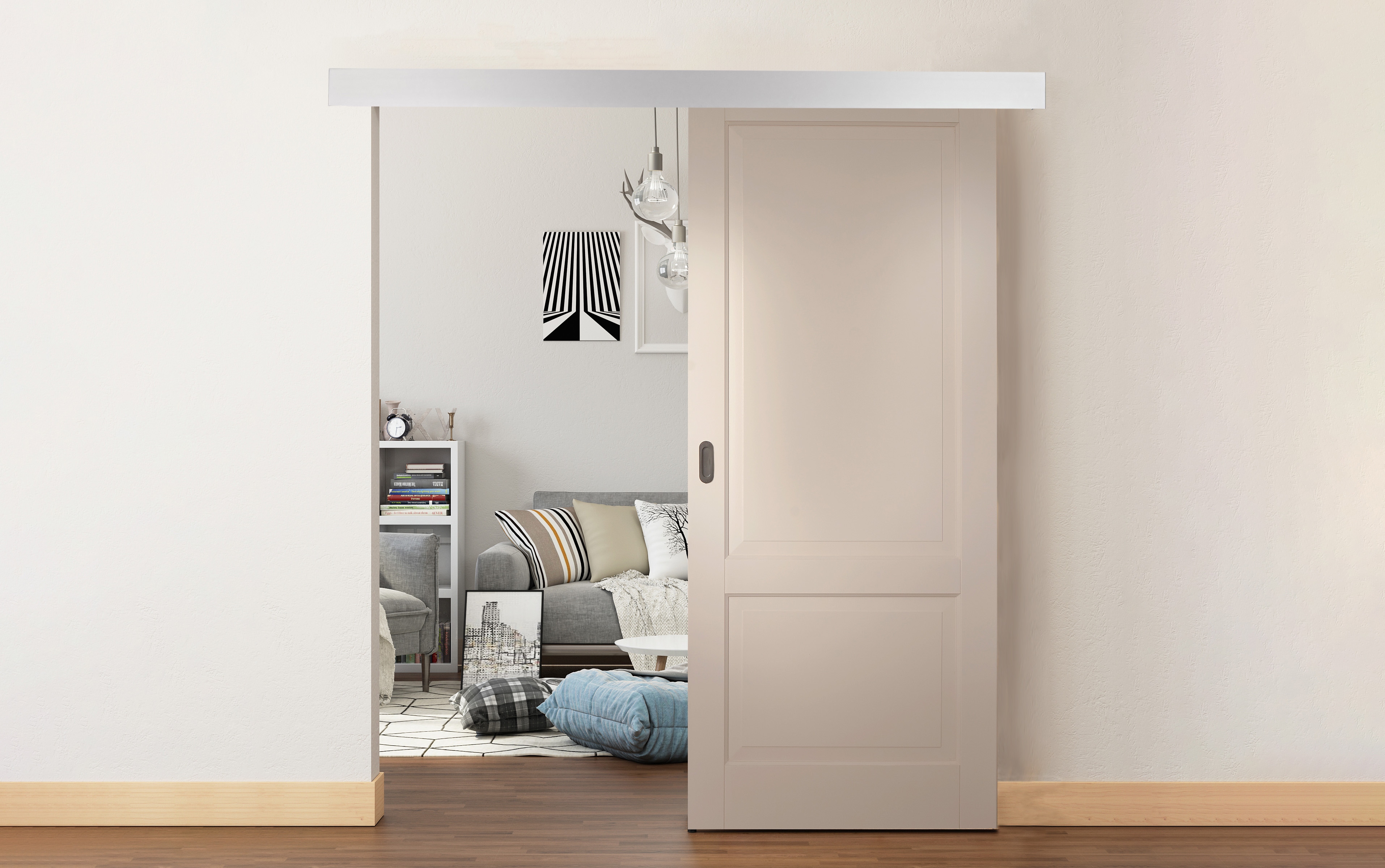

Our new aluminium fascia - Snap Fit - is available in soffit fixed and face fixed variations to suit your applications. The fascia is extremely easy to install and simply clips onto the track.
Optional Accessories
-
SOFTHP Dual Soft CloseProduct code:SOFTHPFrom £92.74 -
SIMHP120 Simultaneous Action KitProduct code:SIMHP120Excl VAT £129.55 -
Compact 120 Low Headroom KitProduct code:CP120Excl VAT £80.17 -
HP120 Husky 120 Pro Fittings KitProduct code:HP120Excl VAT £111.52 -
SnapFit FasicaProduct code:SnapFit FasicaFrom £76.82 -
285HP HangerProduct code:285HPExcl VAT £32.83 -
95 Anodised Aluminium Guide ChannelProduct code:95From £57.11 -
106/95 Offset GuideProduct code:106/95Excl VAT £17.42
Spare Components
Shop our range of spare parts and components for use with the Husky 120 Pro.
-
280HP Anodised Aluminium TrackProduct code:280HPFrom £37.69 -
284HP HangerProduct code:284HPExcl VAT £37.75 -
281HP Face Fix BracketProduct code:281HPExcl VAT £8.41 -
280EC Husky 120 Pro End CapProduct code:280ECExcl VAT £7.04 -
601HP Clip StopProduct code:601HPExcl VAT £15.53 -
102N GuideProduct code:102NExcl VAT £3.61
Frequently Asked Questions
Can the Husky 120 Pro track be cut down?
Yes - the track can be cut to the required length.Is the Husky 120 Pro kits suitable for metal doors?
Yes - Husky 120 Pro is suitable for use with metal doors. Please purchase our 285HP hanger in addition to the kit if installing a metal door.What is meant by 'dual soft close'?
A dual soft close damper works upon both opening AND closing of the door to gently bring the door into its final position.Does Husky 120 Pro installation require routing?
The only routing required for the Husky 120 Pro installation if for the floor guide in the bottom of the door.Is the max. door capacity of 120kg per system or per door?
The 120kg maximum door weight is per door.Can the Husky 120 Pro Soft Close be retrofitted?
Yes - however the door must be removed to retrofit the soft close.Can Husky 120 Pro be used to create a pocket door?
Yes - if using Husky 120 Pro to create a pocket door, you must build your own studwork. If you would like a full pocket door kit solution, including studword and jamb kit, please visit our Pocket Door Pro.
More Information
| SKU | Husky 120 Pro |
|---|---|
| Fire Rated (Yes/No) | No |
| Location | Internal |
| Application | Residential, Commercial |
| Soft Close | Dual (Soft Close AND Open) |
| Max. Door Weight | 120kg |
| Door Material | Wood, Metal |
| Situation | Interior |
| Application | Residential/Commercial |
Q&A
Q&A
Question:
Answer:
Are you referencing a biparting door application? If so, you will need to purchase 2 x 1.8m Husky 120 Pro kits (product code HP120/18A). The track can be cut to size if required.
Thanks,
P C Henderson
Question:
Is there any need for tracking at the bottom of the sliding door to stop any unwanted movement say in a draughty situation? Thanks for responding. ????
Answer:
There is no requirement to have a guide channel at the bottom of the door - a standard floor guide is provided in the Husky 120 Pro kit.
Thanks,
P C Henderson
Question:
Answer:

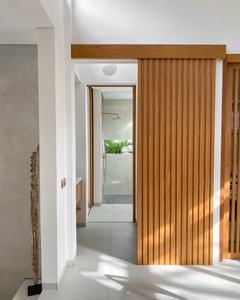

Please view our Marathon Fire Rated product - which is certified to BS 476 Part 22: 1987 for 30 minutes of fire protection.
Thanks,
P C Henderson
Question:
Answer:
Yes, our Husky 120 Pro track can be cut to suit your application.
Thanks,
P C Henderson
Question:
Can your Husky 120 Pro 3000mm be used on a 1800 mm sliding poket door?
Thanks
Enrique
Answer:
Yes - our Husky 120 Pro can be used for a sliding pocket door application, however you would need to build your own framework/cavity wall.
Alternatively, our Pocket Door Pro comes complete with aluminium uprights and can be purchased with an optional liner kit.
Thanks,
P C Henderson
