Sliding door kit for wooden and metal doors weighing up to 100kg
Product Code (Steel Track) | Product Code (Aluminium Track) | No of Doors | Track Length | Max. Door Width | Door Thickness Range | Max. Door Weight | Door Material |
---|---|---|---|---|---|---|---|
H100/15 | H100/15A | 1 | 1500mm | 800mm | 20 - 50mm | 100kg | Wood or Metal |
H100/18 | H100/18A | 1 | 1800mm | 950mm | 20 - 50mm | 100kg | Wood or Metal |
H100/20 | H100/20A | 1 | 2000mm | 1050mm | 20 - 50mm | 100kg | Wood or Metal |
H100/24 | H100/24A | 1 | 2400mm | 1250mm | 20 - 50mm | 100kg | Wood or Metal |
Description | DXF | DWG |
---|
Steel Track - Single Metal Doors |
||||
Steel Track - Single Metal Doors | 112.43 KB | 2.52 MB | 760.50 KB | |
Steel Track - Bypassing Metal Doors |
||||
Steel Track - Bypassing Metal Doors | 128.88 KB | 2.47 MB | 751.85 KB | |
Steel Track - Single Wood Doors |
||||
Steel Track - Single Wood Doors | 107.35 KB | |||
Steel Track - Bypassing Wood Doors |
||||
Steel Track - Bypassing Wood Doors | 123.40 KB | 2.53 MB | 444.16 KB | |
Aluminium Track - Single Metal Doors |
||||
Aluminium Track - Single Metal Doors | 115.69 KB | |||
Aluminium Track - Bypassing Metal Doors |
||||
Aluminium Track - Bypassing Metal Doors | 130.67 KB 130.67 KB | 2.53 MB | ||
Aluminium Track - Single Wood Doors |
||||
Aluminium Track - Single Wood Doors | 92.91 KB | 2.66 MB | 823.54 KB | |
Aluminium Track - Bypassing Wood Doors |
||||
Aluminium Track - Bypassing Wood Doors | 125.00 KB | 2.58 MB | 452.93 KB | |
280 Steel Track |
||||
280 Steel Track | 45.90 KB | 300.96 KB | 252.91 KB | |
280A Aluminium Track |
||||
280A Aluminium Track | 87.35 KB | 441.57 KB | 713.31 KB | |
281AX Brackets |
||||
281AX Brackets | 57.16 KB | 317.93 KB | 155.95 KB | |
281 Brackets |
||||
281 Brackets | 72.30 KB | 351.29 KB | 266.47 KB | |
281A Brackets |
||||
281A Brackets | 57.07 KB | 310.32 KB | 153.94 KB | |
284 Hangers |
||||
284 Hangers | 104.28 KB | 1.10 MB | 466.37 KB | |
102N Guide |
||||
102N Guide | 57.26 KB | 535.19 KB | 206.31 KB | |
601H Clip Stop |
||||
601H Clip Stop | 84.31 KB | 1.08 MB | 465.43 KB | |
287 Track Stop |
||||
287 Track Stop | 53.21 KB | 317.92 KB | 155.89 KB |
Our Husky 100 sliding door kit offers an extremely versatile hardware system which is perfectly suited to single, bi-parting and bypassing sliding doors around the home including sliding wardrobes, sliding passage doors and sliding room dividers. Catering for metal or wooden doors weighing up to 100kg each, Please note: for metal doors, 2 x 285 hangers per door should be purchased in addition to the kit.
The Husky 100 sliding door kit is available in 4 track length options for varying doors widths up to 1250mm and 2 track materials (steel and aluniunium). Our 280 steel track offers a galvanised finished and is a cost effective option. Alternatively, our 280A aluminium track offers a smooth and quiet operation upon opening and closing of the doors. For a more aesthetic appearance, our 280AN anodised aluminium track is available upon request.
For biparting door applications, a fittings kit is available and should be purchased in addition to the kit. The H100 fittings kit includes everything you need to hang an additional door - 2 x hangers, 1 x guide, 1 x clip stop and 1 x track stop.
For doors wider for 1250mm, we recommend purchasing our 280 steel track or 280A aluminium track and a H100 fittings kit. For bi-parting door applications which require a longer track length, we recommend purchased our 280 steel track or 280A aluminium track and 1 x H100 fittings kit.
Other accessories include a Simultaneous Action kit which is perfect for double door applications - simply open or close one door and the other will move simultaneously.
Suitable for DIY projects, Husky Sliding 100 is extremely easy to install. Please see our fitting instructions for more information.

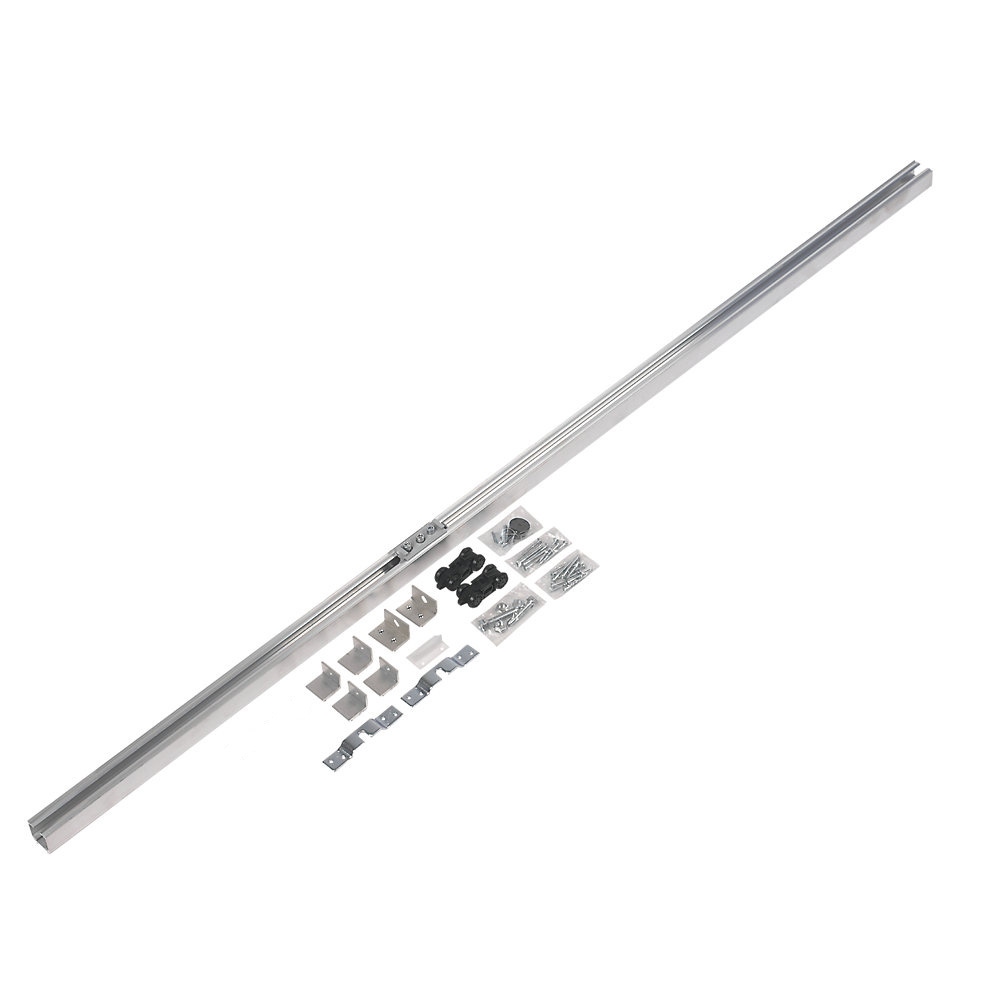

Choose between 8 Husky 100 sliding door kit options for varying track materials and door widths.
Husky Sliding 100 has been designed with ease of installation as a priority. As such, the product is suitable for DIY projects.
The smooth-running system benefits from a range of complementary accessories including a newly designed dual soft close mechanism.
Husky Sliding 100 has been tested to more than 100,000 cycles - providing you with the peace of mind to know we are offering a robust and durable sliding door kit.
Sliding doors are a great way to save valuable floor space in the home compared to a typical swing door. The doors slide within or infront of the opening, freeing up the surrounding space.

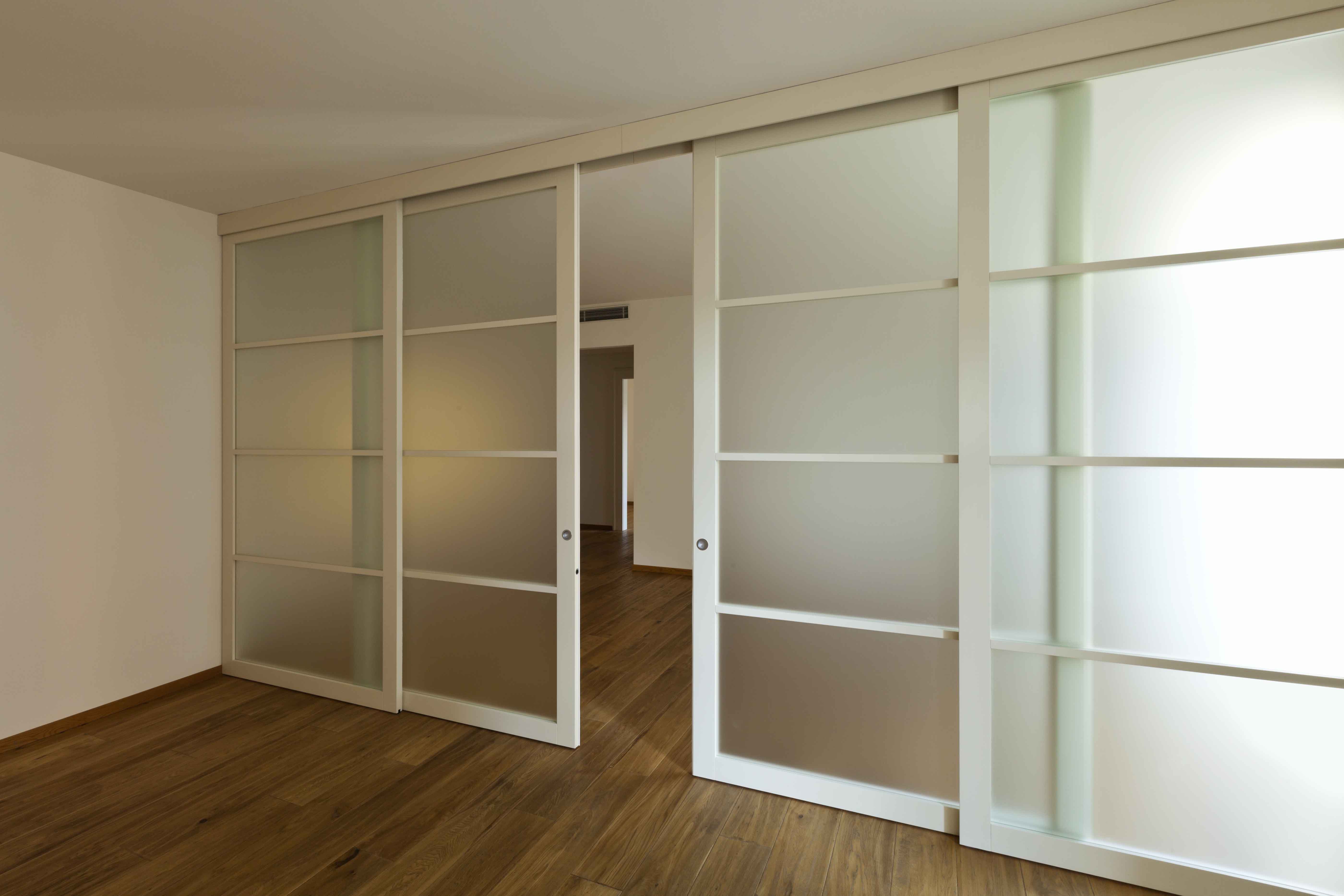

Double sliding doors used as a room divider are a great way to introduce flexible living options in the home. When open, the doors connect two rooms to create larger spaces when socialising and entertaining. When closed, the doors act as a wall to create two individual spaces.
When paired with glazed doors, sliding door systems are a great way to increase the flow of natural light throughout the home.
For large openings whereby typical swing doors would not be suitable, double sliding doors are a great option.
Steel Track
Aluminium Track
Upgrade your Husky 100 sliding door kit with our range of accessories.
Shop our range of spare parts and components for use with the Husky Sliding 100.
View similar products to Husky Sliding 100.
Fire Rated (Yes/No) | No |
---|---|
Location | Internal |
Application | Residential |
Door Material | Wood, Metal |
