Pacer Centrefold
For top hung centre folding interior partition doors weighing up to 35kg and 75kg
SKU:
pacer-centrefold
Contact a member of our sales team to enquire about this product
| Product | Max. Door Height | Max. Door Width | Door Thickness Range | Door Material | Application | Max. Door Weight |
|---|---|---|---|---|---|---|
| Pacer Centrefold 35 | 2700mm | 900mm | 35 - 44mm | Wood | Interior | 35kg |
| Pacer Centrefold 75 | 2700mm | 900mm | 35 - 44mm | Wood | Interior | 75kg |
| Document | Name | File size | |
|---|---|---|---|
|
Pacer Centrefold Brochure Page | 811.18 KB | Download |
| Description | DXF | DWG |
|---|
106N 94 - GUIDE LVL A |
||||
| 106N 94 - GUIDE LVL A | 59.99 KB | 301.97 KB | 152.49 KB | |
94X - CHANNEL LVL A |
||||
| 94X - CHANNEL LVL A | 55.71 KB | 294.59 KB | 150.17 KB | |
1B - BRACKET LVL A |
||||
| 1B - BRACKET LVL A | 59.96 KB | 314.69 KB | 155.89 KB | |
1BX - BRACKET LVL A |
||||
| 1BX - BRACKET LVL A | 62.87 KB | 317.28 KB | 257.21 KB | |
403 2 - HINGE LVL B |
||||
| 403 2 - HINGE LVL B | 84.09 KB | 608.26 KB | 681.50 KB | |
600AN - TRACK LVL A |
||||
| 600AN - TRACK LVL A | 85.96 KB | 325.76 KB | 158.77 KB | |
61B - HANGER LVL A |
||||
| 61B - HANGER LVL A | 71.65 KB | 622.52 KB | 339.51 KB | |
61B4 - HANGER LVL A |
||||
| 61B4 - HANGER LVL A | 90.48 KB | 1.18 MB | 497.74 KB | |
94T - TRESHOLD LVL A |
||||
| 94T - TRESHOLD LVL A | 78.40 KB | 325.99 KB | 159.15 KB | |
600 - PACER CENTREFOLDING INTERIOR 35KG LVL A |
||||
| 600 - PACER CENTREFOLDING INTERIOR 35KG LVL A | 45.68 KB | 3.60 MB | 1.06 MB | |
600 - PACER CENTREFOLDING INTERIOR 65KG LVL A |
||||
| 600 - PACER CENTREFOLDING INTERIOR 65KG LVL A | 62.41 KB | 4.38 MB | 1.27 MB | |
94 - CHANNEL LVL A |
||||
| 94 - CHANNEL LVL A | 44.23 KB | 293.64 KB | 250.93 KB | |
- Doors are hung centrally and can fold to one or both sides
- Any access door should be hinged separately to the jamb
- Ideal for residential or commercial doors

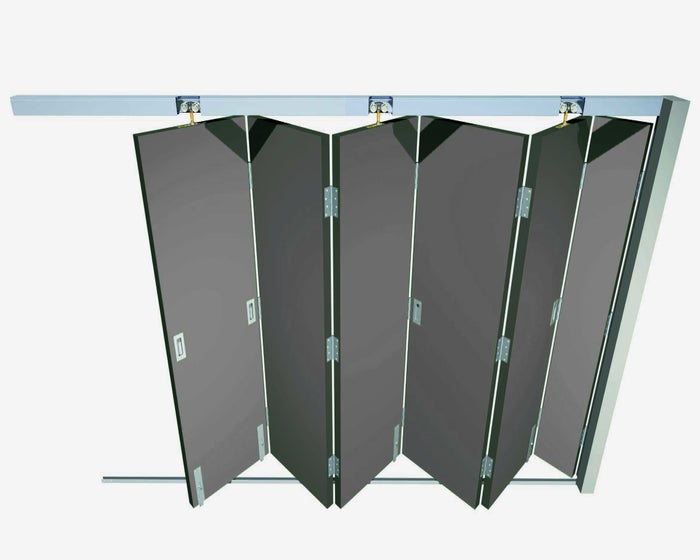

Pacer Centrefold is a top hung system for centre folding wooden partition doors. Doors are hung centrally and can fold to one or both sides. For applications hinged to the jamb, 3.5, 5.5 or 7.5 doors can be used with the half door hinged to the jamb. For best operation of floating units 5, 7 or 9 doors should be used. Any access doors should be hinged separately to the jamb.
More Information
| Fire Rated (Yes/No) | No |
|---|
Q&A
Q&A
Question:
how can i get an enquiry for the Pacer Centrefold 75? I'm from the country called Suriname. Our language is Dutch
Question by: Frits Doelatip on 21 Aug 2021, 01:00
Answer:
Hello You can send your enquiry to international@pchenderson.com and one of our export team will be able to answer you. Â Regards, John Â
Answer by: admin admin (Admin) on 1 Sept 2021, 12:29
