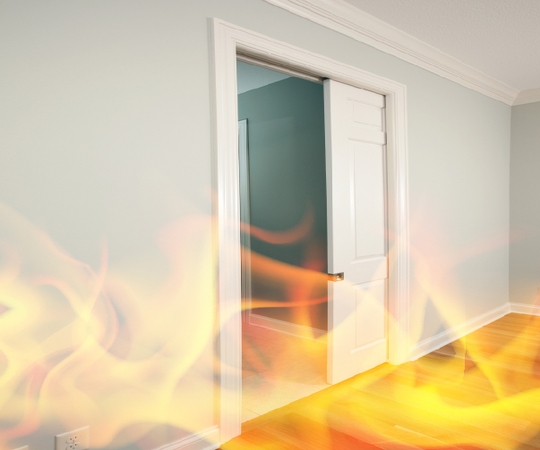

Pocket Door Pro Fire Rated
Combine space-saving design with enhanced fire protection using Pocket Door Pro Fire Rated. Designed to deliver smooth, reliable operation while helping to meet fire safety requirements.
Tested to FD30 Standards
Fully tested to BS EN 1634-1, achieving E30 certification for up to 30 minutes of fire protection.
Designed for Heavyweight Doors
Designed to support doors up to 120kg with a maximum door size of 2315 x 930mm. A solid core FD30 timber based door should be fitted with this system.
Certified with Soft Close & Self Close
For use with our certified self-close kit which comes complete with dual soft close. Please see fire test report and classification certificate for more information. Please contact your building inspector to determine whether you require a self-close.
Durable Aluminium Cavity Frame
Dseigned with a high quality aluminium cavity frame for enhanced durability and rigidity. Perfect for high traffic areas in residential and commercial applications.
Optional Certified Flush Pulls
Complete your installation with a choice of certified flush pulls, available in six stylish finishes to suit a wide range of interior designs while maintaining compatibility with the fire-rated system.
-
Specifications
More Information SKU PDKPRO/FIRE Fire Rated (Yes/No) Yes Product Range Pocket Door Track Material Anodised Aluminium Location Internal Application Residential, Commercial Door Material Wood Fire Rating FD30 (30 minutes) Door Material Wood -
What comes in the box
- Track
- Uprights
- Noggings
- Clip Stop
- Guide
- Hangers
- Fixing Plates
- Floor Brackets
- Liner Kit
- Intumescent Strips
-
Product comparison
Feature Pocket Door Pro Pocket Door Pro Fire Rated Max. Door Weight 120kg 120kg Finished Wall Thickness 115mm, 120mm, 125mm 145mm and 150mm Soft Close? Yes Yes Fire Rated? No FD30
| Product Code | Max. Door Width | Max. Door Height | Door Thickness Range | Max. Door Weight | Finished Wall Thickness |
|---|---|---|---|---|---|
| FD30PRO3/145 | 762mm | 1981mm | 35-45mm | 120kg | 145mm |
| FD30PRO3/150 | 762mm | 1981mm | 35-45mm | 120kg | 150mm |
| FD30PRO4/145 | 838mm | 1981mm | 35-45mm | 120kg | 145mm |
| FD30PRO4/150 | 838mm | 1981mm | 35-45mm | 120kg | 150mm |
| FD30PRO10/145 | 930mm | 2315mm | 35-45mm | 120kg | 145mm |
| FD30PRO10/150 | 930mm | 2315mm | 35-45mm | 120kg | 150mm |
| Document | Name | File size | |
|---|---|---|---|
|
Pocket Door Pro Fire Rated Fitting Instructions | 4.85 MB | Download |
|
|
Pocket Door Pro Fire Rated Datasheet | 1.17 MB | Download |
|
|
Pocket Door Pro Fire Rated test Report Certificate | 5.56 MB | Download |
|
|
Pocket Door Pro Fire Rated Classification Report Certificate | 464.92 KB | Download |
| Description | DXF | DWG |
|---|
Pocket Door Pro Fire Rated - FD30PRO3/145 |
||||
| Pocket Door Pro Fire Rated - FD30PRO3/145 | 174.84 KB | 35.13 MB | 14.70 MB | |
Pocket Door Pro Fire Rated - FD30PRO3/150 |
||||
| Pocket Door Pro Fire Rated - FD30PRO3/150 | 180.30 KB | 35.58 MB | 14.81 MB | |
Pocket Door Pro Fire Rated - FD30PRO4/145 |
||||
| Pocket Door Pro Fire Rated - FD30PRO4/145 | 179.21 KB | 35.46 MB | 14.78 MB | |
Pocket Door Pro Fire Rated - FD30PRO4/150 |
||||
| Pocket Door Pro Fire Rated - FD30PRO4/150 | 183.63 KB | 35.74 MB | 14.85 MB | |
Pocket Door Pro Fire Rated - FD30PRO10/145 |
||||
| Pocket Door Pro Fire Rated - FD30PRO10/145 | 244.81 KB | 40.74 MB | 16.03 MB | |
Pocket Door Pro Fire Rated - FD30PRO10/150 |
||||
| Pocket Door Pro Fire Rated - FD30PRO10/150 | 249.87 KB | 41.10 MB | 16.12 MB | |
Why Buy a Pocket Door?
Maximise floor space
Modern, minimalistic appearance
Ideal for bathrooms, bedrooms and offices
Improved accessibility
Flexible room layouts
Certified to FD30 standards
What's in the Kit?
Anodised Aluminium Track
A high-quality aluminium track paired with durable nylon rollers delivers exceptionally smooth and quiet door operation. For easy access to the track and door after installation, we recommend creating a removable track insert section and connecting it to the main track using our track extension piece.
Aluminium Uprights
High quality aluminium cavity frame for enhanced longevity. The frame noggin securely clips to the uprights for easy and rapid installation.
Certified Self Close
Features a certified self-close mechanism designed to automatically return the door to the closed position, helping maintain fire compartmentation and compliance requirements.
Timber Liner Kit
Supplied with a purpose-designed timber liner kit incorporating intumescent seals that expand when exposed to heat, helping to restrict the spread of fire and smoke.
Opening Size Guide
| Door Size | With Self Close | Without Self Close | ||
| Opening Size | Passage Size | Opening Size | Passage Size | |
| 1981 x 610mm | 2046 x 1282mm | 1966 x 560mm | 2046 x 1250mm | 1966 x 560mm |
| 1981 x 686mm | 2046 x 1434mm | 1966 x 636mm | 2046 x 1402mm | 1966 x 636mm |
| 1981 x 762mm | 2046 x 1586mm | 1966 x 712mm | 2046 x 1554mm | 1966 x 712mm |
| 1981 x 838mm | 2046 x 1738mm | 1966 x 788mm | 2046 x 1706mm | 1966 x 788mm |
| 2040 x 826mm | 2105 x 1714mm | 2025 x 776mm | 2105 x 1682mm | 2025 x 776mm |
|
2040 x 726mm |
2105 x 1514mm | 2025 x 676mm | 2105 x 1482mm | 2025 x 676mm |
|
2315 x 930mm |
2380 x 1922mm | 2300 x 880mm | 2380 x 1890mm | 2300 x 880mm |
FAQ's
Can the kit be cut down to suit non standard door sizes?
Whilst we have created kit packs inline with the most common door sizes, our kits can also be cut to suit non standard doors. Please see our fitting instructions for more information.
Can this kit be used for double pocket door applications?
No - our Pocket Door Pro Fire Rated has only be certified for use with single doors.
What finished wall thickness does this product cater for?
For fire installations, the system should be double boarded with fire rated board on both sides. For exampe:
95mm cavity + (12.5mm x 4) = 145mm finished wall thickness
100mm cavity + (12.5mm x 4) = 150mm finished wall thickness
Do I require a self close?
To determine if you require a self close, please contact your building inspector.
More Information
| SKU | PDKPRO/FIRE |
|---|---|
| Fire Rated (Yes/No) | Yes |
| Product Range | Pocket Door |
| Track Material | Anodised Aluminium |
| Location | Internal |
| Application | Residential, Commercial |
| Door Material | Wood |
| Fire Rating | FD30 (30 minutes) |
| Door Material | Wood |
