Rustic 100

Only %1 left

Unique sliding barn door hardware with beautifully crafted hangers for doors weighing up to 100kg

  • For wooden and metal doors weighing up to 100kg
  • Designed with a flat back track and exposed steel hangers for a rustic finish
SKU:
rustic-100
From £219.99
1
Short Code (Standard Kits)Short Code (Single Soft Stop)Short Code (Double Soft Stop)No. of DoorsFinishTrack LengthDoor Width RangeDoor Thickness RangeMax. Door Weight (standard kit)Max. Door Weight (with soft close)Door MaterialApplication
R100/20R80SOFT/20R80SOFTD/201Black2000mm500 - 1000mm36 - 46mm100kg80kgWood or Metal Interior
R100/30R80SOFT/30R80SOFTD/301Black3000mm500 - 1500mm36 - 46mm100kg80kgWood or Metal Interior
R100SS/20R80SSSOFT/20R80SSSOFTD/201Stainless Steel2000mm500 - 1000mm36 - 46mm100kg80kgWood or Metal Interior
R100SS/30R80SSSOFT/30R80SSSOFTD/301Stainless Steel3000mm500 - 1500mm36 - 46mm100kg80kgWood or Metal Interior
Description PDF DXF DWG
RUSTIC 80 - STRAIGHT SLIDING LVL A
RUSTIC 80 - STRAIGHT SLIDING LVL A 23.88 KB 1.28 MB 252.73 KB
R80SOFT
R80SOFT 96.98 KB 524.84 KB 393.50 KB
  • Available in 2000mm or 3000mm track lengths
  • Two finishes available - matt black and stainless steel
  • Available as standard, single soft stop or double soft stop
  • Kit comes complete with 2 oval flush pulls
  • Fittings kit available for double door specifications

Sliding Barn Door Hardware

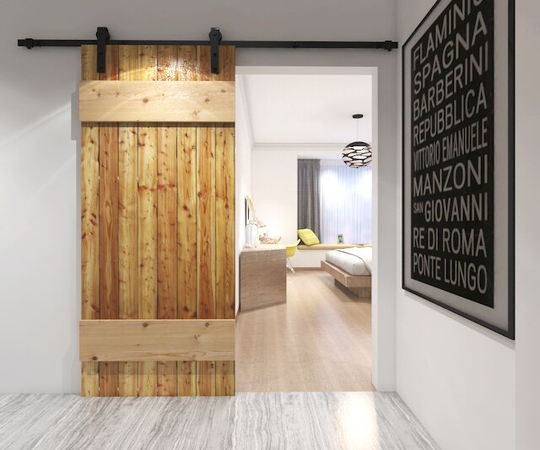

Rustic 100 sliding barn door hardware is ideal for barn conversions, period properties or simply for a unique feature in the home. Suitable for internal doors weighing up to 100kg, the system creates a traditional look for sliding wooden or metal doors with the exposed steel straps fastening down the front of the door.

Two Stunning Finishes

Rustic 100 is available in a matt black powder coat finish or stainless steel and is available in 2m or 3m lengths. Each sliding barn door kit comes complete with two oval flush pulls.  A fittings kit can be purchased for when an extra door is required.

Optional Soft Close

Our Rustic sliding barn door kit is also available with an included soft close or soft close and open – a great addition for your Rustic system. Simply push the door, the soft close catches it and gently moves it into the open and/or closed position – preventing slamming and bouncing. Our optional soft stop is extremely easy to install and can be installed with any track due to its discreet design. Please note: For biparting door applications on a 3m track, dual soft close and open is not possible. The soft close function can only be used for each door in the opening position. Please see product datasheet for more information.

The Rustic 100 Kit includes:

  • Hangers (x2)
  • Door Stops (x2)
  • Floor Guide (x1)
  • “Flat Track” (x1)
  • Track Wall Spacers (x 5 for 2000mm, x 7 for 3000mm)
  • Anti-Jump Cam (x2)
  • Oval Flush Pulls (x2)

The Rustic 100 Kit can be enhanced with:

More Information

More Information
Fire Rated (Yes/No) No

Q&A

Question:

I’m trying to understand how the door sits over the open door space? How does it effectively close/block the open door space? Does it give as much privacy as a normal door would?
Question by: Jacci on 1 Dec 2020, 00:00

Answer:

Good afternoon,We recommend a 40mm overlap pf the door and opening - this would allow the door to fully close over the opening.For more detail, please see step 1 of our fitting instructions.Thanks,P C Henderson
Answer by: admin admin (Admin) on 7 Dec 2020, 14:19

Question:

What is the gap between the door and the wall ?
Question by: Kate Donkin on 22 Oct 2020, 01:00

Question:

Can the tracks be shortened?
Question by: Dave on 7 Nov 2020, 00:00

Answer:

Yes - the Rustic track can be cut down however you will need to be mindful of where you cut the track in relation to the pre drilled holes for the wall spacers. Also - if cutting the matt black version of this product the end of the track will need repainting.Many thanksP C Henderson Ltd
Answer by: admin admin (Admin) on 9 Nov 2020, 11:50

Question:

Is the Soft Stop feature visible when installed?
Question by: Jade on 19 Nov 2020, 00:00

Answer:

Good afternoon,The soft close unit is fixed behind the track so is not visible when installed.Many thanks,P C Henderson
Answer by: admin admin (Admin) on 19 Nov 2020, 15:56

Question:

Could you confirm that if we have 2 opening doors on a 3m track, we can't have soft close and open kits fitted to both doors? The product datasheet doesn't seem to clarify this.
Question by: David Edmonds on 21 Feb 2021, 00:00

Answer:

Good morning,For biparting doors on a 3m track, both soft close and soft open is not possible as there is not enough fixing points within the track.For this application, it is only possible to have soft close OR soft open on both doors. This is detailed on the second page of the product datasheet.Thanks,KateMarketing Executive
Answer by: admin admin (Admin) on 23 Feb 2021, 08:08
