Rustic Top Mount
Contemporary sliding barn door hardware with top mounted hangers for doors weighing up to 100kg
- For wooden and metal doors weighing up to 100kg
- Designed with a flat bar track and top mounted hangers for a contemporary, stylish finish
| Standard Kits | Single Soft Kits | Dual Soft Close Kits | Finish | Track Length | Door Width Range | Door Thickness Range | Max Door Weight |
|---|---|---|---|---|---|---|---|
| RTM/20 | RTMSOFT/20 | RTMSOFTD/20 | Black | 2000mm | 500 - 1000mm* | 35 - 50mm | 100kg** |
| RTM/30 | RTMSOFT/30 | RTMSOFTD/30 | Black | 3000mm | 500 - 1500mm* | 35 - 50mm | 100kg** |
| RTMSS/20 | RTMSSSOFT/20 | RTMSSSOFTD/20 | Steel | 2000mm | 500 - 1000mm* | 35 - 50mm | 100kg** |
| RTMSS/30 | RTMSSSOFT/30 | RTMSSSOFTD/30 | Steel | 3000mm | 500 - 1500mm* | 35 - 50mm | 100kg** |
| Document | Name | File size | |
|---|---|---|---|
|
Rustic Top Mount Fitting Instructions | 1.01 MB | Download |
|
|
Rustic Top Mount Datasheet | 808.59 KB | Download |
|
|
Rustic Top Mount Quality Certificate | 179.33 KB | Download |
|
|
Rustic Top Mount Brochure Page | 319.03 KB | Download |
| Description | DXF | DWG |
|---|
* For dual soft close kits, the minimum door width is 762mm
** Max door weight is 80kg when installed with a soft stop
Rustic Top Mount
Rustic Top Mount offers an alternative sliding barn door kit to our Rustic 100 whereby the hangers attach to the top of the door. Choose between two stunning finishes - matt black brings a traditional and industrial look to the home. Alternatively, opt for our stainless steel finish to bring a contemporary feel to the home.
Kit Pack
Our Rustic Top Mount is available in kit pack format to include everything required for installation - including track, hangers, stops, guide and oval flush pulls. All components match the chosen finish of your kit.
Easy to Install
Suitable for DIY applications, Rustic Top Mount is extremely easy to install. The system comes with fitting instructions to guide you through the process.
Biparting Door Applications
For double sliding barn door applications, a fittings kit can be purchased which includes all components required to hang an additional door.
Optional Soft Stop
Our Rustic 100 comes with a choice of included soft close AND/OR open. Simply push the door and the soft close will gently bring the door into the open AND/OR closed position - preventing slamming and boucning. The Rustic Soft Stop has been designed to be extremely minimalistic and fits behind the track - offering a discreet appearance. The maximum door weight is reduced to 80kg per door when installing the system with a soft close.
Please note: Due to the fixing locations of the soft close within the track, bi-parting door applications on one length of 2m or 3m track can only achieve soft open per door. For double soft stop action (soft close AND open), please purchase 2 x double soft stop kits in 2m or 3m lengths.
Dual Soft Close
Rustic Top Mount is available with an included soft stop to offer open soft close AND/OR open - preventing slamming and bouncing.
Kit Pack
Choose between our two stunning finishes (matt black or stainless steel) and a choice of track length (2m or 3m).
Easy Installation
Rustic Top Mount has been designed with easy installation as a priority. To assist in the installation process, we have a step by step installation guide.
10 Year Manufacturer Guarantee
Rustic Top Mount has been tested to 100,000 cycles to ensure the product is durable and fit for purpose. As a result, we offer a 10 year manufacturer warranty for ultimate peace of mind.

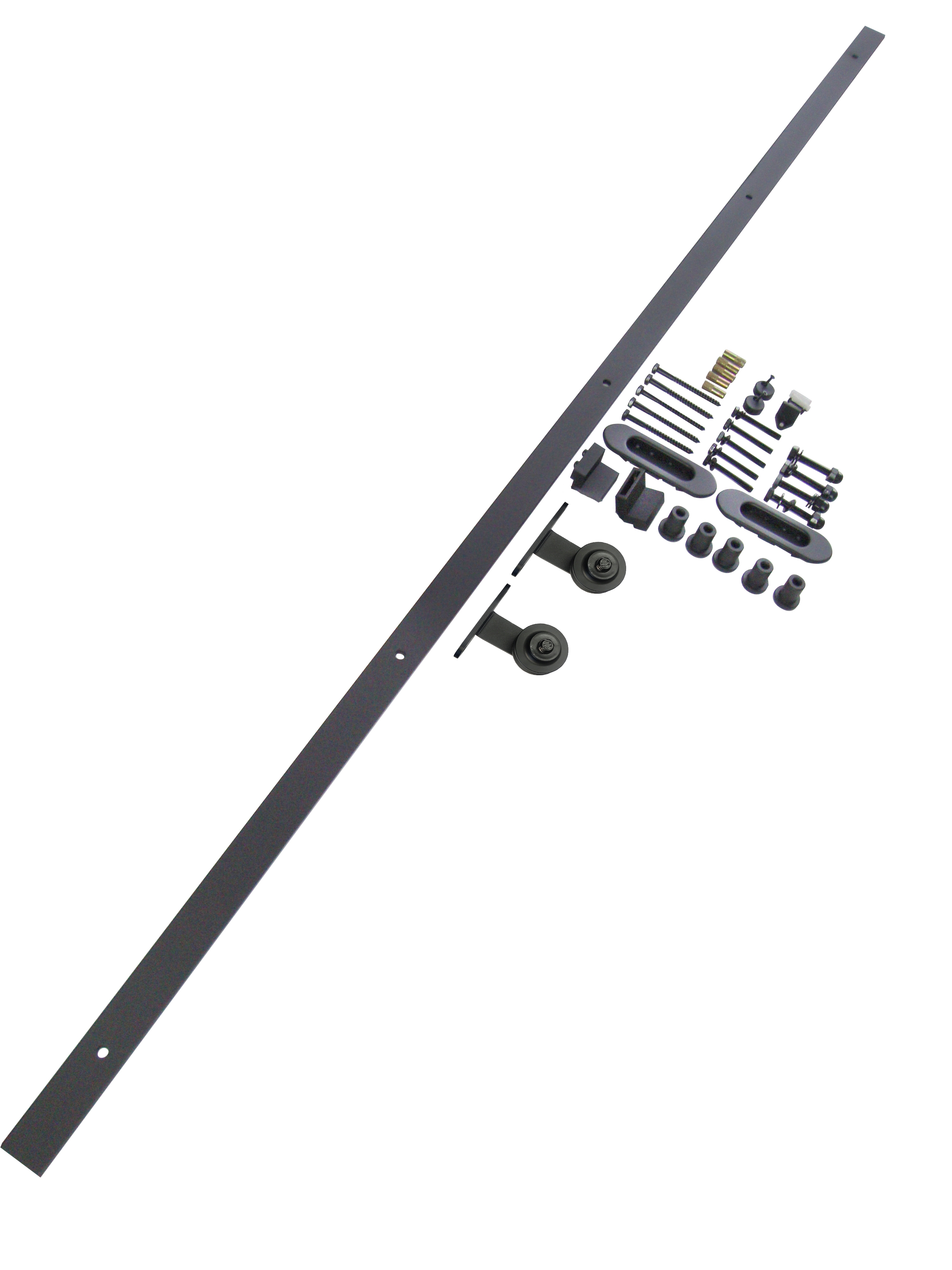

Kit Contents
- Flat Bar Track
- Track Wall Spacers
- Hangers
- Door Stops
- Floor Guide
- Anti Jump Cam
- Oval Flush Pulls
- Rustic Soft Stop (Soft stop kits only)
Optional Accessories
Upgrade your Rustic Top Mount sliding door kit with our range of accessories.
-
R80SOFT Rustic Soft StopProduct code:R80SOFTExcl VAT £45.65
Spare Components
Shop our range of spare parts and components for use with the Rustic Top Mount
-
144 Oval Sliding Door HandleProduct code:144From £15.00
Similar Products
View similar products to Rustic Top Mount.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Location | Internal |
| Application | Residential, Commercial |
| Soft Stop | Dual Soft Close |
| Door Material | Wood |
Q&A
Q&A
Question:
Answer:
Question:
Answer:
Question:
Answer:
We are unable to advise the drill bit size required as we do not know the material and thickness of your door. We would recommend using a drill bit smaller than the threads of the screw and that is the same size as the screw shank diameter.
If the hole is drilled to the same size as the outer threads, it won't grip.
Hope that helps.
