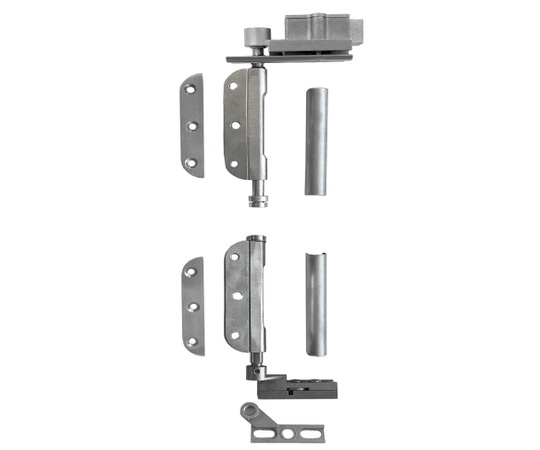

SFPX1 Securefold Pro Pivot
Top and bottom pivot set for use with Securefold Pro bifold door hardware.
- Available in 4 stunning finishes - satin, gold, chrome and black
- Designed with a cosmetic cover for a minimalistic finish
- Allows for lateral adjustment of the doors after installation
- Aids easy installation by providing a fixed datum point from the edge of the track
| Document | Name | File size | |
|---|---|---|---|
|
SFPX1 Pivot Set - Standard Mortice - DWG | 197.71 KB | Download |
|
|
SFPX1 Pivot Set - Standard Mortice - DXF | 1014.92 KB | Download |
|
|
SFPX1 Pivot Set - Standard Mortice - PDF | 163.31 KB | Download |
|
|
SFWPX1 Pivot Set - Non Mortice - DWG | 316.13 KB | Download |
|
|
SFWPX1 Pivot Set - Non Mortice - DXF | 1.66 MB | Download |
|
|
SFWPX1 Pivot Set - Non Mortice - PDF | 169.51 KB | Download |
|
|
SFRPX1 Pivot Set - Radius Mortice - DWG | 145.60 KB | Download |
|
|
SFRPX1 Pivot Set - Radius Mortice - DXF | 792.67 KB | Download |
|
|
SFRPX1 Pivot Set - Radius Mortice - PDF | 166.30 KB | Download |
Product Description
Our new and improved pivot set for use with Securefold Pro brings with it many benefits:
- The new pivot is smaller in size and comes with a cosmetic cover which fixes to the track and conceals the hardware above, offering a minimalistic appearance
- The pivot has been designed to allow for easy installation. During installation, the cosmetic cover of the pivot block creates a datum point, removing the need for additional measuring.
- For easy maintenance and adjustment after installation, the pivot allows for lateral adjustment by the simply turn of the allen key to reduce or increase the clearance between the jamb and the pivot door.
Choose between four stunning finishes (satin, chrome, gold or black) and three hinge options (standard mortice, non mortice and radius mortice).

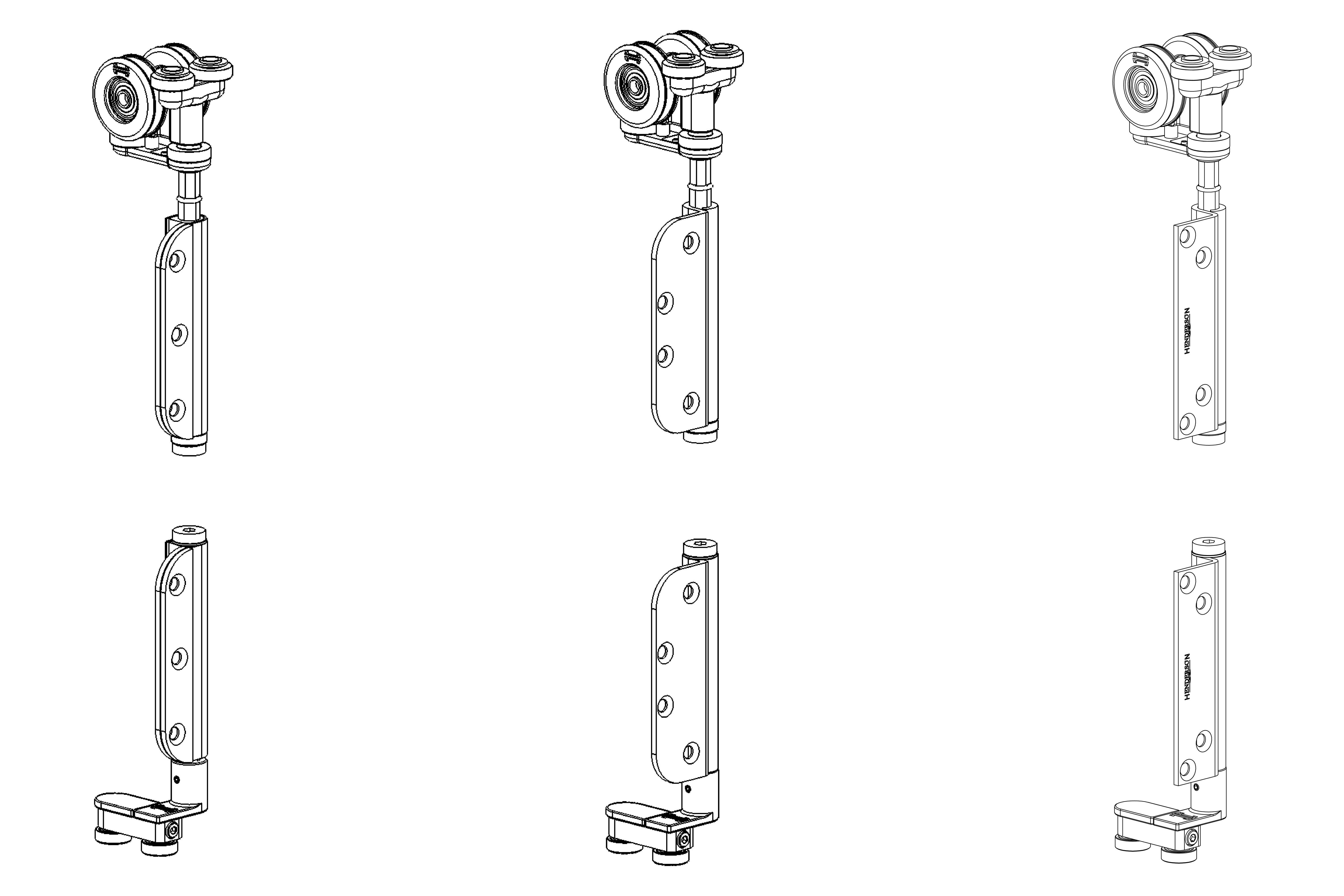

Securefold Bifold Door Hardware Hinge Options
Securefold Pro hardware is available in a choice of three hinge options to suit your application and installation preference.
Mortice Standard
The Securefold Pro standard hinge option combines mortice end door pivots to create a clean finish. The pivot is concealed betwee the door and the jamb and uses the trusted surface mounted intermediate hinges for ease of installation across the remaining door configurations.
Radius Mortice
Radius mortice hinges, also known as 'mortice round', are perfectly suited to joiners and installers with access to CNC machinery. The hinges are routed into the door frame, resulting in a flush and professional finish.
Non Mortice
A non mortice hinge is an entirely surface mounted option that requires no routing or additional preperation before fitting. This is an easy and versatile option of hardware which can be used on wooden and aluminium doors.
More Information
| Fire Rated (Yes/No) | No |
|---|
