Shutter Slide
High performing straight sliding system for the movement of manual or automated shutters and louvre panels.
- Suitable for wooden and metal panels weighing up to 120kg each
- Available for single sliding, simultaneous action or telescopic panel applications
- A choice of a variety of hangers, brackets and guide options to create a bespoke solution tailored to your application
- Extremely durable and robust - made from 316 marine grade stainless steel and anodised aluminium.
Contact a member of our sales team to enquire about this product
| Configuration | Min. Panel Width | Max. Panel Height | Panel Thickness Range | Max. System Width | Max. Panel Weight (Manual) | Max. Panel Weight (Automatic) |
|---|---|---|---|---|---|---|
| Single Panel | 400mm | 3000mm | 35 - 50mm | 6000mm | 120kg | 120kg |
| Simultaneous Action (2 panels) | 400mm | 3000mm | 35 - 50mm | 6000mm | 120kg | 60kg |
| Telescopic (2 panels) | 400mm | 3000mm | 35 - 47mm | 6000mm | 120kg | 80kg |
| Telescopic (3 panels) | 400mm | 3000mm | 35 - 47mm | 6000mm | 120kg | 60kg |
| Document | Name | File size | |
|---|---|---|---|
|
Shutter Slide 24V Control Panel Fitting Instructions | 508.19 KB | Download |
|
|
Shutter Slide 24V Motor Fitting Instructions | 1.08 MB | Download |
|
|
Shutter Slide 230V Motor Fitting Instructions | 616.22 KB | Download |
|
|
Shutter Slide Telescopic Manual and Auto Fitting Instructions | 1.78 MB | Download |
|
|
Shutter Slide Single Panel Automated Fitting Instructions | 1.22 MB | Download |
|
|
Shutter Slide Single Panel Manual Fitting Instructions | 1.06 MB | Download |
|
|
Shutter Slide Brochure Page | 671.01 KB | Download |
|
|
Shutter Slide Datasheet | 911.21 KB | Download |
| Description | DXF | DWG |
|---|
1 SS - BRACKET LVL A |
||||
| 1 SS - BRACKET LVL A | 67.10 KB | 417.88 KB | 284.35 KB | |
120 - TRACK LVL A |
||||
| 120 - TRACK LVL A | 61.04 KB | 325.38 KB | 259.37 KB | |
5 SS - BRACKET LVL A |
||||
| 5 SS - BRACKET LVL A | 76.20 KB | 483.21 KB | 301.70 KB | |
51 120 SS - HANGER LVL A |
||||
| 51 120 SS - HANGER LVL A | 89.45 KB | 641.66 KB | 345.37 KB | |
56 120 SS - HANGER LVL A |
||||
| 56 120 SS - HANGER LVL A | 80.04 KB | 569.52 KB | 325.38 KB | |
HH4 SS - STOP LVL A |
||||
| HH4 SS - STOP LVL A | 67.27 KB | 417.62 KB | 283.68 KB | |
100127 GSS SL GUIDE PDF LVL A |
||||
| 100127 GSS SL GUIDE PDF LVL A | 99.19 KB | 596.16 KB | 811.69 KB | |
100194 |
||||
| 100194 | 121.30 KB | 568.38 KB | 728.69 KB | |
100197 |
||||
| 100197 | 121.58 KB | 494.72 KB | 692.49 KB | |
100200 |
||||
| 100200 | 134.41 KB | 499.91 KB | 714.12 KB | |
100202 |
||||
| 100202 | 133.82 KB | 500.18 KB | 711.30 KB | |
100203 |
||||
| 100203 | 142.96 KB | 560.48 KB | 771.50 KB | |
100204 |
||||
| 100204 | 155.21 KB | 602.29 KB | 807.03 KB | |
100210 |
||||
| 100210 | 128.56 KB | 489.04 KB | 693.51 KB | |
Shutter Slide

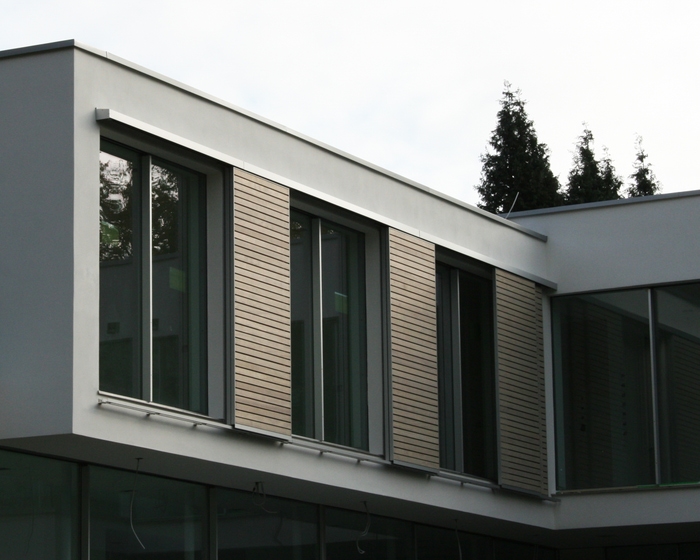

Shutter Slide offers a high performing straight sliding system suitable for the movement of manual or automated shutters and louvre panels.

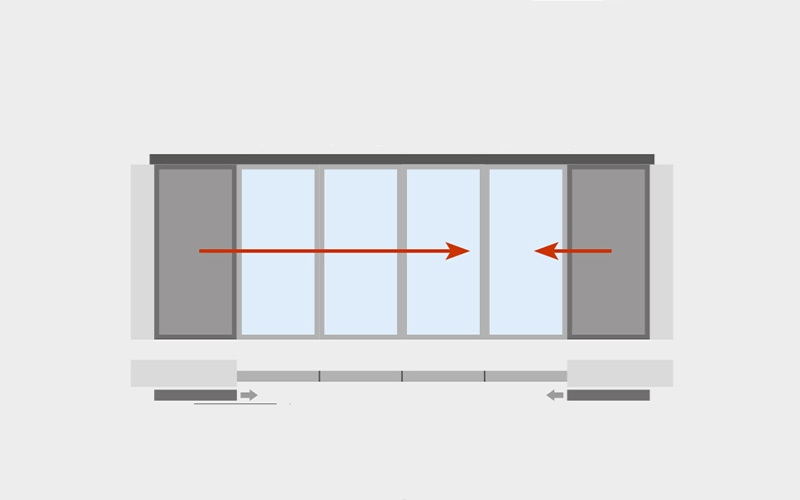

Extremely Flexible & Versatile
The highly flexible system offers a variety of inspiring and function design possibilities for wooden and metal external shutters weighing up to 120kg including single panel, simultaneous action panel or telescopic panel variants.

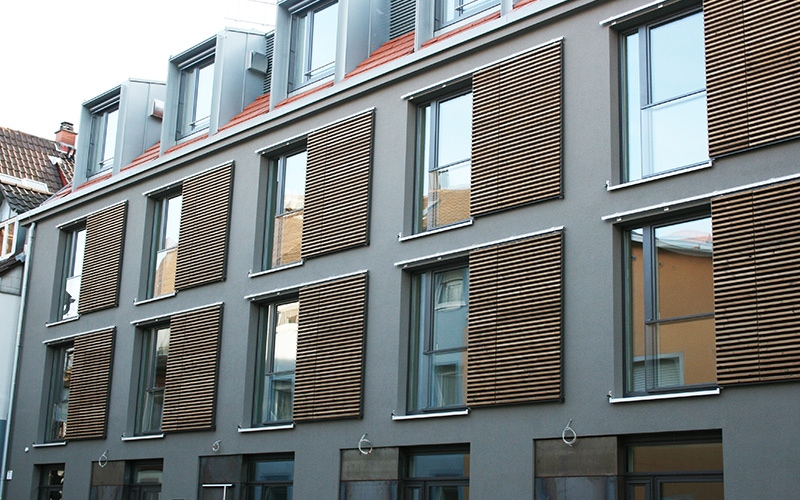

Bespoke Solution
With a variety of hangers, guide options and brackets available, Shutter Slide can be tailored to meet the exact requirements of your application.

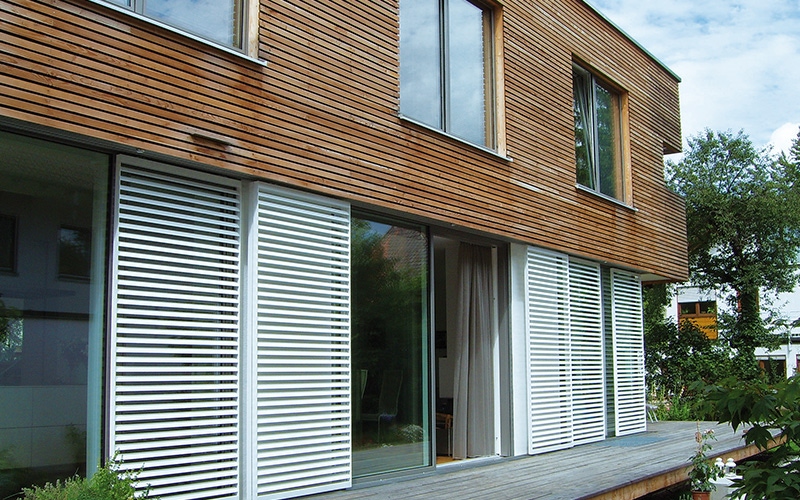

Smooth Operation
Using proven technology from our popular Soltaire system, Shutter Slide has been designed with an anodised aluminium track, precision engineered hangers to offer an extremely smooth, quiet and rattle free operation.
Easy Installation
A comprehensive range of fitting instructions are available to guide you through the installation process.

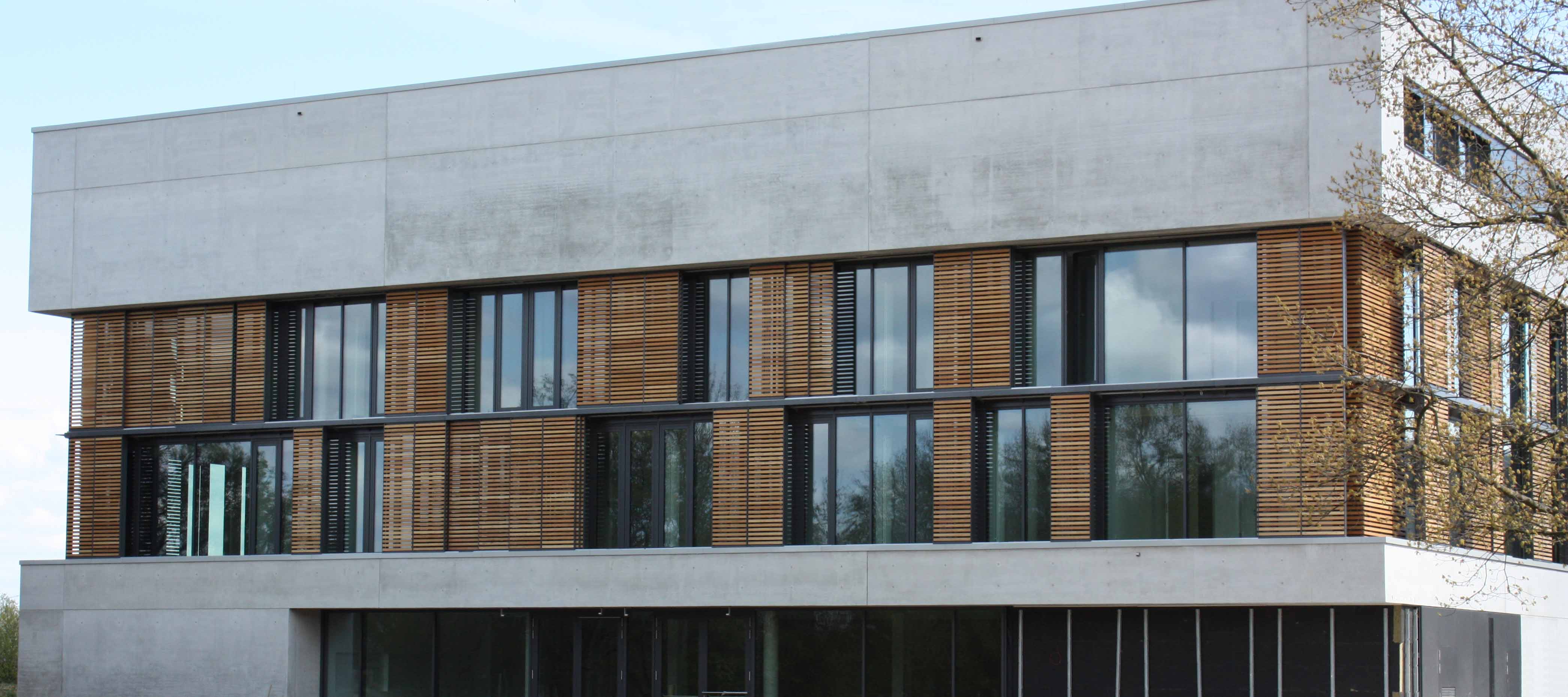

Durable & Robust
Manufactured from 316 marine grade stainless steel, hard wearing polymers and anodised aluminium, the system is extremely robust, highly corrosion resistant and developed to ensure a long lifespan. Our Shutter Slide system has also been tested to 100,000 cycles, and meets BS EN 1527, BS EN 13659, BS EN 16005, and ISO 9001 standards.
Wind load testing should be carried out based on a projects individual requirements. P C Henderson can utilise in-house 3D CAD software to provide an indicative wind load calculation.
Proudly Made in Britain
Shutter Slide components are manuifactured from the high quality materials from our factory based in County Durham, United Kingdom.
Shutter Slide Features and Benefits
Shutter Slide offers a high performing sliding system for external louvre panels, bringing a host of functional and aesthetic benefits to any property.
Four Stunning Finishes
Shutter Slide is highly flexible and offers a variety of inspiring and function design possibilities for wooden and metal external shutters weighing up to 120kg including single panel, simultaneous action panel or telescopic panel variants.
Bespoke Solution
Choose between our range of hangers, guides and brackets to bring a bespoke solution tailored to your project.
Manual and Automated Options
Upgrade your Shutter Slide system with our 24V or 230V motor which can be operated by the push of a button, remote control or wired into the central control panel of a building.
Smooth Operation
Using proven technology from our popular Soltaire system, Shutter Slide has been designed with an anodised aluminium track, precision engineered hangers to offer an extremely smooth, quiet and rattle free operation.
Durable & Robust
Manufactured from 316 marine grade stainless steel, hard wearing polymers and anodised aluminium, the system is extremely robust, highly corrosion resistant and developed to ensure a long lifespan.
Optional Fascia Available
Our anodised aluminium fascia brings a minimalistic finish to your shutter application.
The Benefits of External Sliding Shutters
Temperature Optimisation
In warmer climates, sliding shutters can be used to reduce exposure to direct sunlight, minimising the need for air conditioning. In cooler climates, sliding shutter systems add an additional layer of insulation to help retain indoor heat, reducing the need for artificial heating.
Sustainable
By reducing energy consumption, external shutters support sustainable building practices and meet energy efficiency regulations, making them a valuable element in green architecture.
Flexible Privacy Options
Sliding shutters allow for flexible privacy options without compromising on the flow of natural light and ventilation of air.
Weather Protection
Protect and shield windows from harsh environmental elements, including strong winds and heavy rainfall.
Increased Security
Beyond their aesthetic appeal, shutters provide a practical solution for security by serving as an additional barrier against unauthorized access.
Aesthetic Appearance
Shutters are becoming increasingly popular to bring a stylish aesthetic to the exterior of a building.
Components
View our range of Shutter Slide components.
-
120 Anodised Aluminium TrackProduct code:120From £43.87 -
51/120/SS HangerProduct code:51/120/SSExcl VAT £70.86 -
56/120/SS Angle Frame Fixing HangerProduct code:56/120/SSExcl VAT £60.88 -
GSSULR/ Channel for Shutter SlideProduct code:GSSULR/ ChannelFrom £119.39 -
94SC Aluminium Support ChannelProduct code:94SCFrom £54.98 -
94P Polypropylene ChannelProduct code:94PFrom £26.27 -
GSS/MK Fixing PlateProduct code:GSS/MKFrom £27.01 -
GSS/SBK10 Wide Base GuideProduct code:GSS/SBK10Excl VAT £12.90 -
GSS/SSK10 Guide for Shutter SlideProduct code:GSS/SSK10Excl VAT £13.10 -
GSS/SL Floor GuideProduct code:GSS/SLExcl VAT £4.52 -
106SS/94 Concealed GuideProduct code:106SS/94Excl VAT £25.31 -
HH4/AN Track StopProduct code:HH4/ANExcl VAT £31.18 -
E/TEL* Telescopic Set for Shutter SlideProduct code:E/TELFrom £235.02 -
E120/24V Motor for Shutter SlideProduct code:E120/24VExcl VAT £775.96 -
E120/230V Motor for Shutter SlideProduct code:E120/230VExcl VAT £964.93 -
E/B10 Belt for Shutter SlideProduct code:E/B10Excl VAT £12.15 -
E/PA10 Pulley Wheel for Shutter SlideProduct code:E/PA10Excl VAT £60.62 -
E/CL10 Clamp for Shutter SlideProduct code:E/CL10Excl VAT £24.65 -
E2/RCK Evolve Remote Control KitProduct code:E2/RCKExcl VAT £143.19
Frequently Asked Questions
Why does the maximum weight capacity of the doors reduce depending on the number of doors?
Our Shutter Slide motors are capable of carrying a maximum weight of 120kg per system. Therefore the maximum door weight for simultaneous action panels and telescopic panels has been updated to reflect this.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Product Range | Shutterslide |
| Max. Door Weight | 120kg |
| Max. Door Width | 6000mm |
| Door Material | Wood or Metal |
| Situation | Exterior |
| Application | Residential/Commercial |
