Sienna
Elegant system for sliding wooden doors weighing up to 120kg
| Product Code | No of Doors | Door Width Range | Door Thickness Range | Max. Door Weight | Door Material | Application |
|---|---|---|---|---|---|---|
| SN120T | 1 | 700 - 2500mm | 30 - 70mm | 120kg | Wood | Interior |
| Document | Name | File size | |
|---|---|---|---|
|
Sienna Fitting Instructions | 7.97 MB | Download |
|
|
Sienna Timber Quality Certificate | 155.53 KB | Download |
|
|
Sienna Brochure Page | 539.05 KB | Download |
|
|
Sienna, Self Build Bungalow, P C Henderson Case Study | 2.20 MB | Download |
|
|
Sienna Datasheet | 506.51 KB | Download |
| Description | DXF | DWG |
|---|
101SS - GUIDE LVL A |
||||
| 101SS - GUIDE LVL A | 58.72 KB | 322.11 KB | 258.43 KB | |
25UDS DOOR STOP LVL A |
||||
| 25UDS DOOR STOP LVL A | 118.49 KB | 148.20 KB | ||
8-12 SN - GUIDE LVL A |
||||
| 8-12 SN - GUIDE LVL A | 56.95 KB | 328.03 KB | 259.78 KB | |
SN120T - SIENNA TIMBER LVL B |
||||
| SN120T - SIENNA TIMBER LVL B | 73.30 KB | 6.46 MB | 1.78 MB | |
- Caters for wooden doors weighing up to 120kg
- Designed with top mounted stainless steel hangers which attach to the top of the door
- Rollers are engineered to run effortlessly along a brushed stainless steel tubular track
- For biparting doors, two kits can be purchased
- Track must be specified in addition to this kit (please see option extras)

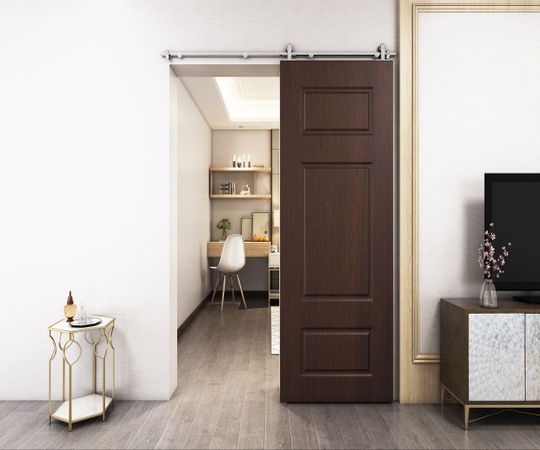

Sienna offers an elegant sliding door system for wooden doors weighing up to 120kg each. The system is ideal for interior doors and room dividers to enhance flexible living and maximize floor space.
Stunning Stainless Steel Finish
Designed with stainless steel hangers and a tubular track, Sienna offers a robust sliding door system. The systems rollers have been expertly engineered to effortlessly glide along the track.
Double Sliding Doors
For bi-parting doors, two kits can be purchased.
Specification
Track must be purchased in addition to kit, please view here.
Accessories
A range of handles and flush pulls are available as optional extras - please see accessory tab below. DELIVERY: This is a made to order product, please choose standard delivery at checkout, delivery time will be confirmed by email. For sliding glass doors, please visit Sienna Glass.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Product Range | Sienna |
| Track Length | No defined track length |
| Number Of Doors | 1 |
| Max. Door Weight | 120kg |
| Fire Rating | Not fire rated |
| Max. Door Height | 3000mm |
| Max. Door Width | 2500mm |
| Door Material | Wood |
| Situation | Interior |
| Door Thickness Range | 30 - 70mm |
