SlideLite 50
Sliding wardrobe door kit for bypassing doors weighing up to 50kg with dual soft close
- Available in two finishes - black or satin
- Designed with dual soft close as standard - preventing unwanted slamming
- Easy to install - suitable for DIY projects
- Rollers can be surface mounted or mortice fixed for flexibility of installation
- Available in kit pack format to cater for 2 or 3 bypassing doors
- For additional doors, a fittings kit is available
| Product Code | No. of Doors | Finish | Track Length | Door Width Range | Max Door Height | Door Thickness Range | Max. Door Weight |
|---|---|---|---|---|---|---|---|
| SL18 | 2 | Satin | 1800mm | 400 - 900mm | 2500mm | 18 - 20mm* | 50kg |
| SL24 | 3 | Satin | 2400mm | 400 - 900mm | 2500mm | 18 - 20mm* | 50kg |
| SL18B | 2 | Black | 1800mm | 400 - 900mm | 2500mm | 18 - 20mm* | 50kg |
| SL24B | 3 | Black | 2400mm | 400 - 900mm | 2500mm | 18 - 20mm* | 50kg |
| Document | Name | File size | |
|---|---|---|---|
|
SlideLite 50 Data Sheet | 661.80 KB | Download |
|
|
SlideLite 50 Fitting Instructions | 1.96 MB | Download |
|
|
SlideLite 50 Brochure Page | 284.20 KB | Download |

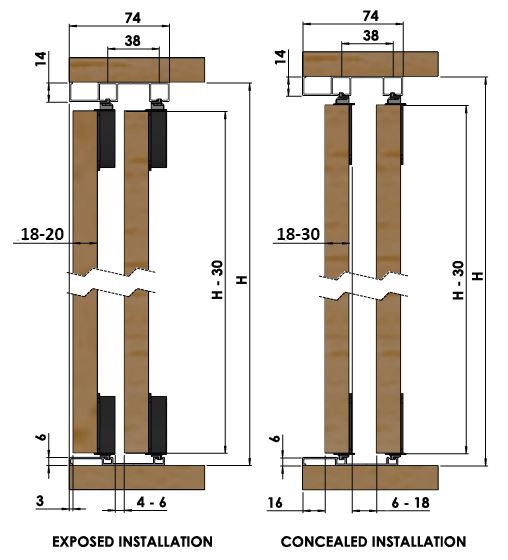

* Maximum door thickness increases to 30mm if using a concealed installation, as per the below.
SlideLite 50 Sliding Wardrobe Door Kit
New to the range, SlideLite 50 offers a soft closing sliding wardrobe door kit for doors weighing up to 50kg each. Designed with dual soft close, the system offers exceptionally smooth operation to gently bring the door into the open AND closed position - preventing slamming and increasing the overall longevity of the product.
Perfect for DIY installations, SlideLite 50 is extremely easy to install and offers flexible installation options. The system can be installed with surface fixed rollers which requires no routing. Alternatively, the rollers can be mortice fixed to allow a professional, concealed finish with the rollers sitting flush with the door.
Choose between two stunning track finishes - satin or black- as well for 2 or 3 bypassing door applications. For applications whereby additional doors are required - a fittings kit should be purchased.
Dual Soft Close
SlideLite 50 offers a soft closing sliding wardrobe door kit which gently bringing the door to its final open AND closed position without slamming.
Kit Pack
To ensure optimum performance the product is available in two kit variants, depending on the number of doors required. There is also a fittings kit for use with an additional door.
Easy Installation
Suitable for DIY projects and professional installations, SlideLite is extremely easy to install. The rollers can be surface mounted or mortice fixed for flexibility of installation.
SlideLite 50 In Action
Watch our SlideLite 50 sliding wardrobe system in action - with dual soft close which gently brings the door to a close and prevents slamming.

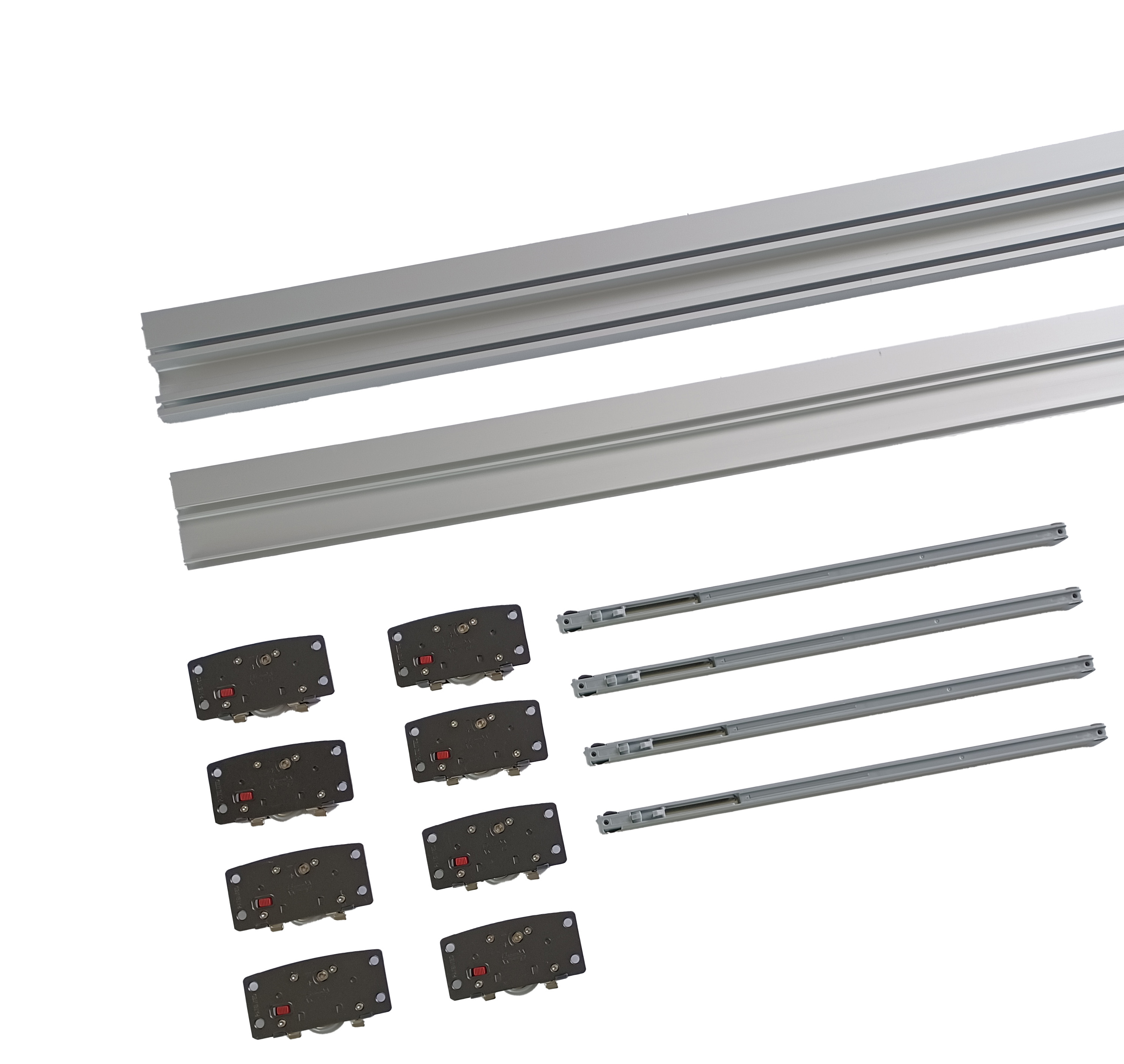

Kit Contents
- Top Track x 1
- Bottom Track x 1
- Rollers - x 8 (2 doors), x 12 (3 doors)
- Soft Close Damper x 4
Optional Accessories
Enhance your sliding wardrobe with our range of optional accessories.
-
SlideLite 50 Fittings KitProduct code:SL01Excl VAT £16.33
Similar Products
View other sliding wardrobe door kits by P C Henderson.
-
Single TopProduct code:single-topFrom £32.34 -
Double TopProduct code:double-topFrom £55.94
More Information
| SKU | SlideLite 50 |
|---|---|
| Fire Rated (Yes/No) | No |
| Track Material | Aluminium |
| Location | Internal |
| Application | Residential |
| Soft Close | Dual (Soft Close AND Open) |
| Max. Door Weight | 50kg |
| Door Material | Wood |
Q&A
Q&A
Question:
Answer:
Our SlideLite 50 caters for doors weighing up to 50kg each.
Thanks,
P C Henderson
Question:
How much overlap would i need between a pair of doors?
Or is it just a case of setting them to suit the chosen ironmongery?
Answer:
We would recommend a minimum overlap of 50mm.
Thanks
P C Henderson
Question:
Overall width of opening 3570mm. The formation will be 2 doors at the front meeting centrally. Then two doors at the rear positioned left and right. For this I intend buying 2 no. 1800m Sidelite 50 kits. Do I need any thing else? Thanks.
Answer:
No, you will only need 2 x SL18 1800mm kits.
Thanks,
P C Henderson
Question:
Answer:
Yes - our SlideLite track can be cut to size to suit your opening. For more information, please see our fitting instructions on the product page.
Thanks,
P C Henderson
Question:
I just wanna make sure - is it 50kg total or is it every door that Can weigh up to 50kg
Thankin you in advance
