Soltaire Centrefold
For metal or wooden centre folding door weighing up to 45kg and 75kg
- Manufactured from marine grade 316 stainless steel making the system extremely durable and hard wearing
- Ideal for partition doors in conference rooms, educational buildings, leisure buildings and offices as well as external shutters
| Kit Short Code | Door Configuration | Max. Door Width | Max. Door Height | Door Thickness Range | Max. Door Weight | Door Material | Application |
|---|---|---|---|---|---|---|---|
| SCF145 | 1.5 Door Base Kit | 900mm | 3000mm | 35 - 44mm | 45kg | Wood/Metal | Interior/Exterior |
| SCF245 | 2 Door Add-On Kit | 900mm | 3000mm | 35 - 44mm | 45kg | Wood/Metal | Interior/Exterior |
| SCF175 | 1.5 Door Base Kit | 900mm | 3300mm | 35 - 44mm | 75kg | Wood/Metal | Interior/Exterior |
| SCF275 | 2 Door Add-On Kit | 900mm | 3300mm | 35 - 44mm | 75kg | Wood/Metal | Interior/Exterior |
| SF5S | 1 Door Add-On Kit | 900mm | 3300mm | 35 - 44mm | 45kg/75kg | Wood/Metal | Interior/Exterior |
| Document | Name | File size | |
|---|---|---|---|
|
Soltaire Endfold Fitting Instructions | 739.17 KB | Download |
|
|
Soltaire Centrefold Datasheet | 667.76 KB | Download |
|
|
Soltaire Centrefold Fitting Instructions | 683.92 KB | Download |
| Description | DXF | DWG |
|---|
180 - TRACK LVL A |
||||
| 180 - TRACK LVL A | 62.42 KB | 323.24 KB | 258.79 KB | |
250 - TRACK LVL A |
||||
| 250 - TRACK LVL A | 62.77 KB | 324.16 KB | 259.11 KB | |
94SC - CHANNEL LVL A |
||||
| 94SC - CHANNEL LVL A | 26.64 KB | 321.53 KB | 153.93 KB | |
SOLTAIRE CENTREFOLD 45 - 1 |
||||
| SOLTAIRE CENTREFOLD 45 - 1 | 162.01 KB | 3.25 MB | 1.42 MB | |
SOLTAIRE CENTREFOLD 45 - 2 |
||||
| SOLTAIRE CENTREFOLD 45 - 2 | 172.08 KB | 5.02 MB | 2.14 MB | |
SOLTAIRE CENTREFOLD 45 - 3 |
||||
| SOLTAIRE CENTREFOLD 45 - 3 | 179.64 KB | 5.26 MB | 2.23 MB | |
SOLTAIRE CENTREFOLD 75 - 1 |
||||
| SOLTAIRE CENTREFOLD 75 - 1 | 164.17 KB | 3.23 MB | 1.41 MB | |
SOLTAIRE CENTREFOLD 75 - 2 |
||||
| SOLTAIRE CENTREFOLD 75 - 2 | 171.48 KB | 5.00 MB | 2.14 MB | |
SOLTAIRE CENTREFOLD 75 - 3 |
||||
| SOLTAIRE CENTREFOLD 75 - 3 | 180.90 KB | 5.29 MB | 2.23 MB | |
- Can cater for doors weighing up to a maximum of 45kg or 75kg, making the system extremely flexible for various applications
- Caters for doors weighing up to 45kg or 75kg, making the system extremely flexible for various applications
- Manufactured from marine grade 316 stainless steel making the system extremely durable and hard wearing
- Ideal for partition doors in conference rooms, educational buildings, leisure buildings and offices as well as external shutters
- Utilises proven technology from our popular Soltaire and Securefold systems

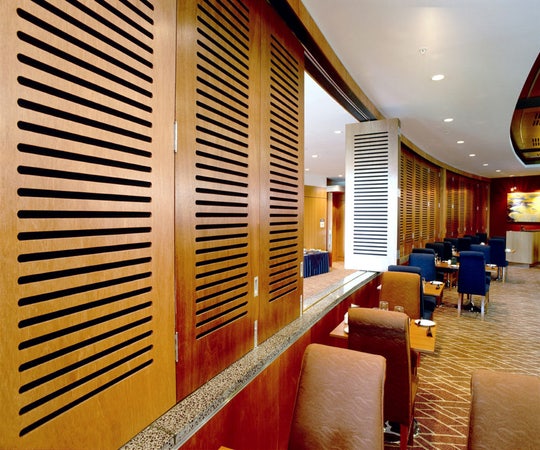

Catering for folding doors weighing up to 45kg and 75kg, Soltaire Centrefold is the ideal solution for partition doors in residential and commercial applications. Manufactured from 316 marine grade stainless steel, the system is extremely durable and hard wearing, utilising components from our popular Securefold and Soltaire products. The system is also particularly suitable for applications where increased height is a requirement.
As a centre folding system, the weight of the doors is supported centrally under the track. Panels can be floating or fold to one or both sides of the opening as well as being able to cater for multiple combinations of folding panels to cover any width of opening. For best operation - one, three, five or seven panels should be used.
Track, support channel and polypropylene channel must be purchased in addition to kit. For the 45kg system please purchase the 180 track and for the 75kg system please purchase the 250 track.
Please note: This is a made to order item, delivery date will be provided upon order confirmation.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Product Range | Soltaire |
| Location | Internal |
| Application | Residential, Commercial |
| Door Material | Wood |
