Soltaire Endfold
For metal or wooden end folding doors weighing up to 45kg and 75kg
- End folding units of up to eight doors can be pivoted to each side of the opening
- Manufactured from 316 marine grade stainless steel making the system extremely durable and hard wearing
| Kit Short Code | Door Configuration | Max. Door Width | Max. Door Height | Door Thickness Range | Max. Door Weight | Door Material | Application |
|---|---|---|---|---|---|---|---|
| SEF145 | 2 Door Base Kit | 900mm | 3000mm | 35 - 44mm | 45kg | Wood/Metal | Interior/Exterior |
| SEF245 | 2 Door Add On-Kit | 900mm | 3000mm | 35 - 44mm | 45kg | Wood/Metal | Interior/Exterior |
| SEF175 | 2 Door Base Kit | 900mm | 3300mm | 35 - 44mm | 75kg | Wood/Metal | Interior/Exterior |
| SEF275 | 2 Door Add-On Kit | 900mm | 3300mm | 35 - 44mm | 75kg | Wood/Metal | Interior/Exterior |
| SF5S | 1 Door Add-On Kit | 900mm | 3300mm | 35 - 44mm | 45kg/75kg | Wood/Metal | Interior/Exterior |
| SEFP | Swing Door | 900mm | 3300mm | 35 - 44mm | 45kg/75kg | Wood/Metal | Interior/Exterior |
| Document | Name | File size | |
|---|---|---|---|
|
Soltaire Endfold Datasheet | 611.75 KB | Download |
| Description | DXF | DWG |
|---|
180 - TRACK LVL A |
||||
| 180 - TRACK LVL A | 62.42 KB | 323.24 KB | 258.79 KB | |
250 - TRACK LVL A |
||||
| 250 - TRACK LVL A | 62.77 KB | 324.16 KB | 259.11 KB | |
94SC - CHANNEL LVL A |
||||
| 94SC - CHANNEL LVL A | 26.64 KB | 321.53 KB | 153.93 KB | |
SOLTAIRE ENDFOLD 45 - 3+1 DOOR SYSTEM |
||||
| SOLTAIRE ENDFOLD 45 - 3+1 DOOR SYSTEM | 174.55 KB | 5.06 MB | 2.16 MB | |
SOLTAIRE ENDFOLD 45 4 DOOR SYSTEM |
||||
| SOLTAIRE ENDFOLD 45 4 DOOR SYSTEM | 185.33 KB | 5.26 MB | 2.23 MB | |
SOLTAIRE ENDFOLD 75 3+1 DOOR SYSTEM LVLB |
||||
| SOLTAIRE ENDFOLD 75 3+1 DOOR SYSTEM LVLB | 148.45 KB | 5.09 MB | 880.05 KB | |
SOLTAIRE ENDFOLD 75 4 DOOR SYSTEM LVLB |
||||
| SOLTAIRE ENDFOLD 75 4 DOOR SYSTEM LVLB | 159.87 KB | 5.27 MB | 908.90 KB | |
- Can cater for doors weighing up to a maximum of 45kg or 75kg, making the system extremely flexible
- End folding units of up to eight doors can be pivoted to each side of the opening
- Manufactured from 316 marine grade stainless steel making the system extremely durable and hard wearing

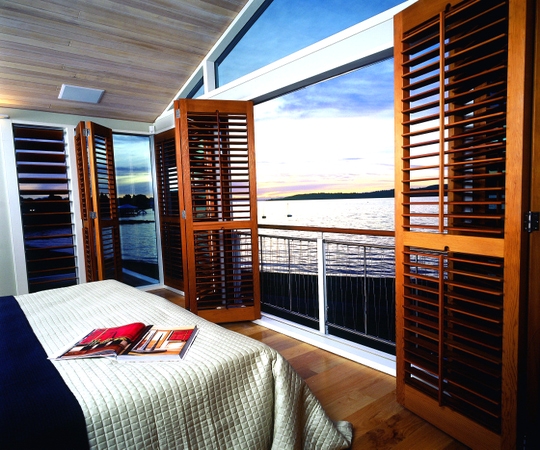

- Ideal for partition doors in conference rooms, educational buildings, leisure buildings and offices as well as external shutters
- Utilises proven technology from our popular Soltaire and Securefold systems
Soltaire Endfold is the ideal solution for partition doors in residential or commercial applications, catering for folding doors weighing up to 45kg or 75kg. Manufactured from marine grade 316 stainless steel, the system is extremely durable and hard wearing, utilising components from our popular Securefold and Soltaire products.
The system is particularly suitable for partitions where all doors are of equal width. The folding unit is pivoted in the track and off the floor - allowing adjustment on all doors. Doors can fold to one or both sides of the opening, as well as being able to cater for multiple combinations to cover any width of opening. End folding units of up to eight doors can be pivoted to each side of the opening.
Track, support channel and polypropylene channel must be purchased in addition to kit. For the 45kg system please purchase the 180 track and for the 75kg system please purchase the 250 track.
Please note: This is a made to order item, delivery date will be provided upon order confirmation.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Max. Door Weight | 75kg |
| Max. Door Height | 3300mm |
| Max. Door Width | 900mm |
| Door Material | Wood or Metal |
| Situation | Interior/Exterior |
| Application | Residential/Commercial |
