Versaframe
For sliding metal doors weighing up to 450kg
SKU:
versaframe
Contact a member of our sales team to enquire about this product
| Track Used | Max. Door Height | Max. Door Width | Max. Door Weight | Door Material | Application |
|---|---|---|---|---|---|
| 301 | 5000mm | 5000mm | 400kg | Metal | Exterior |
| 301H | 5000mm | 5000mm | 450kg | Metal | Exterior |
| Document | Name | File size | |
|---|---|---|---|
|
Versaframe Datasheet | 615.21 KB | Download |
- Ideal for agricultural and industrial applications
- Wall mounted and standard guide systems

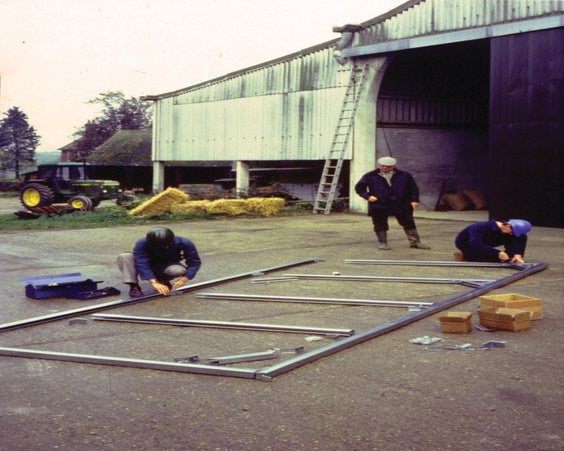

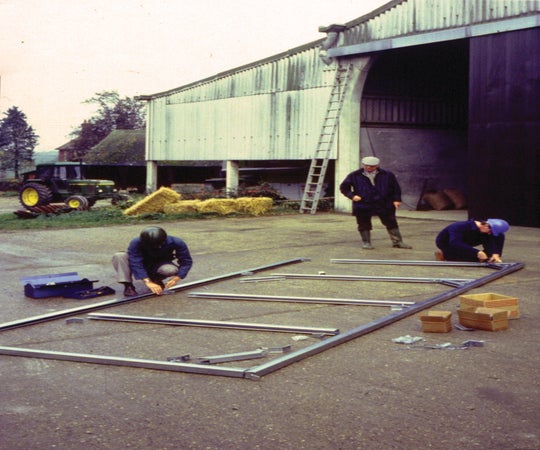

- Steel frame sections supplied in kit form for on-site construction
Versaframe is ideally suited where sturdy sliding doors are required for use in agricultural and industrial applications. With a choice of two guide systems – wall mounted and bottom channel – steel frame sections are supplied in kit form for on-site constructions of metal doors which can be clad in the customers choice of cladding.
Wall mounted guide system is ideal for farm doors or dirty industrial applications as no floor channel is required.
More Information
| Fire Rated (Yes/No) | No |
|---|
