Zenith
Only %1 left

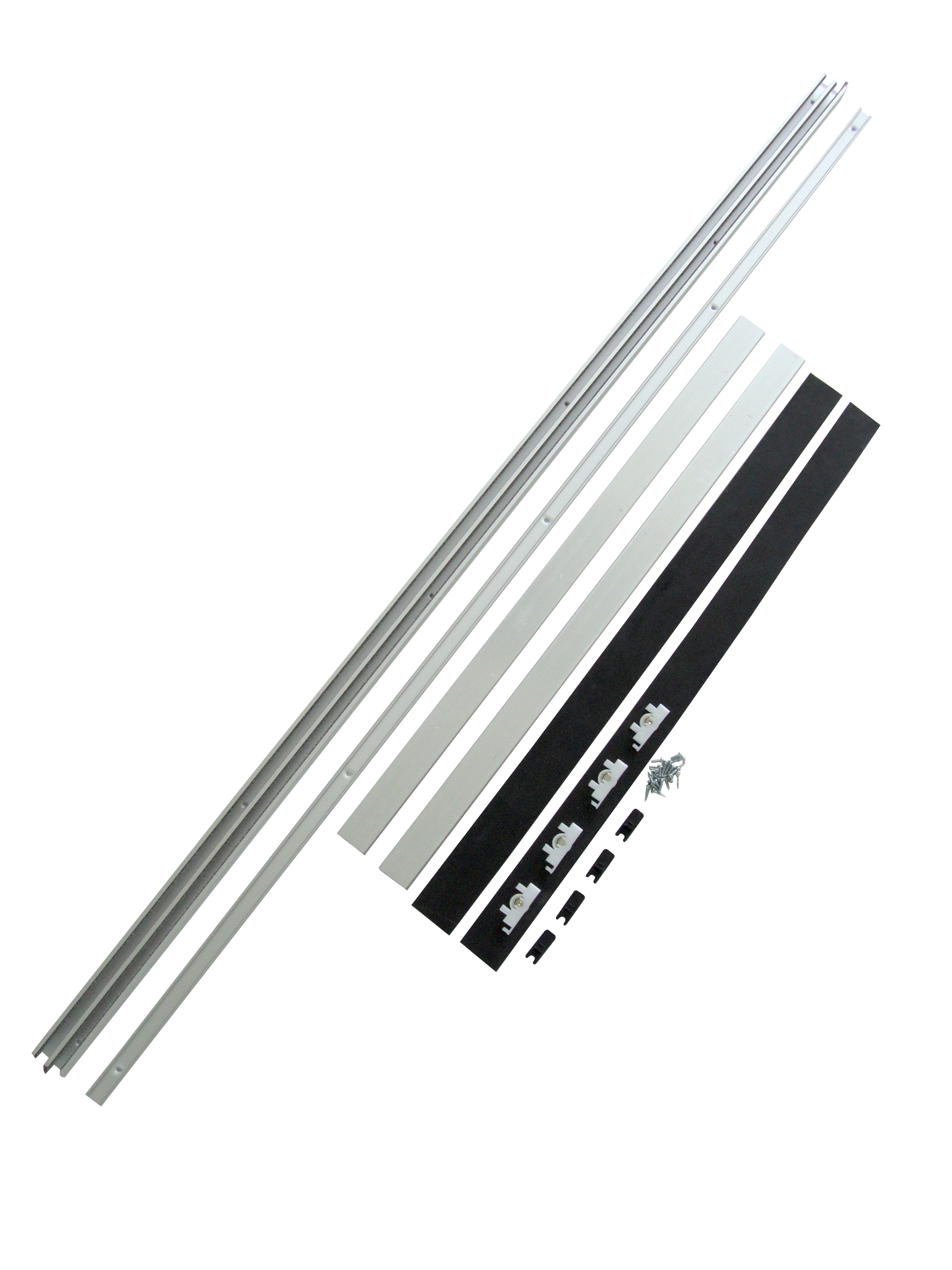

For bypassing sliding glass cupboard doors weighing up to 25kg
- Ideal for bookcases, display units and cabinets
- Smooth and silent operation
SKU:
zenith
From
£96.50
| Order Code | No of Doors | Track Length | Max Door Width | Max Door Thickness | Max Door Weight | Door Material | Application |
|---|---|---|---|---|---|---|---|
| Z12 | 2 | 1200mm | 916mm | 6mm | 25kg | Glass | Interior |
| Z15 | 2 | 1500mm | 916mm | 6mm | 25kg | Glass | Interior |
| Z18 | 2 | 1800mm | 916mm | 6mm | 25kg | Glass | Interior |
| Document | Name | File size | |
|---|---|---|---|
|
Zenith Fitting Instructions | 1.39 MB | Download |
|
|
Zenith Quality Certificate | 132.75 KB | Download |
|
|
Zenith Brochure Page | 605.86 KB | Download |
| Description | DXF | DWG |
|---|
503 - GLASS RAIL LVL A |
||||
| 503 - GLASS RAIL LVL A | 58.44 KB | 303.66 KB | 151.94 KB | |
506 - END CAP LVL A |
||||
| 506 - END CAP LVL A | 52.30 KB | 427.74 KB | 180.88 KB | |
510 - BOTTOM RAIL LVL A |
||||
| 510 - BOTTOM RAIL LVL A | 58.56 KB 58.56 KB | 307.89 KB 307.89 KB | 153.15 KB 153.15 KB | |
512 - TOP CHANNEL LVL A |
||||
| 512 - TOP CHANNEL LVL A | 67.76 KB 67.76 KB | 331.72 KB | 158.81 KB 158.81 KB | |
514N - BOTTOM ROLLER LVL A |
||||
| 514N - BOTTOM ROLLER LVL A | 57.86 KB 57.86 KB | 333.97 KB 333.97 KB | 159.62 KB 159.62 KB | |
ZENITH - SLIDING GLASS DOOR GEAR LVL A |
||||
| ZENITH - SLIDING GLASS DOOR GEAR LVL A | 76.00 KB | 3.14 MB | 952.27 KB | |
- Catering for glass doors weighing up to 25kg and measuring 6mm thick
- Ideal for bookcases, display units and cabinets
- Smooth and silent operation
- Installation video available
- Optional accessories include a cylinder lock and finger pull

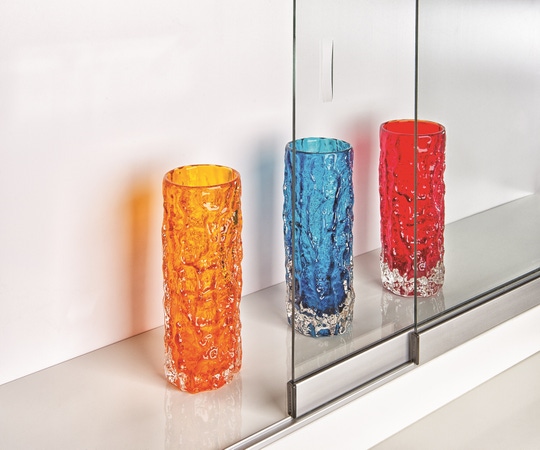

Zenith offers a bypassing sliding door kit for glass panels weighing up to 25kg. The system is ideal for bookcases, display units, hatch doors or cabinets.
Track Lengths
Zenith is available in a number of track lengths to cater for a maximum opening width of 1800mm. The track can be cut to size to suit your applications.
Smooth and Quiet Operation
The system has been designed with an anondised aluminium rail and brush strips to ensure a silent and easy-gliding action.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| No of Doors | 2 |
| Location | Internal |
| Application | Residential |
| Door Material | Glass |
Q&A
Q&A
Question:
Can 6mm perspex be used instead of glass?
Question by: Kate Donkin on 22 Oct 2020, 01:00
Answer:
Good Afternoon, Yes this will be fine as long as it is 6mm. Many thanks, Kate Marketing Assistant
Answer by: admin admin (Admin) on 22 Oct 2020, 15:56
Question:
What is the maximum height of the bottom runner (from bottom of glass to floor) ? And do you do the same system for 3mm metal?
Question by: Edward Foster on 23 Sep 2024, 21:36
Answer:
Good afternoon,
There is no maximum panel height for this system as long as the panel is a maximum of 25kg.
Unfortunately this system only caters for glass panels. For metal sliding cupboard, please contact us and our customer service team will be able to advise on the best system.
Thanks,
P C Henderson
There is no maximum panel height for this system as long as the panel is a maximum of 25kg.
Unfortunately this system only caters for glass panels. For metal sliding cupboard, please contact us and our customer service team will be able to advise on the best system.
Thanks,
P C Henderson
Answer by: Kate Donkin (Admin) on 24 Sep 2024, 13:21
Question:
Can the bottom rail be secured to glass eg. by silicone?
Question by: Kate Donkin on 22 Oct 2020, 01:00
Answer:
Good afternoon, Unfortunately, this system is designed to be attached to timber. Although it may be possible for the system to be secured to glass with alternative fixtures, we have not tested this application and would not recommend this. Many thanks, Kate Marketing Assistant
Answer by: admin admin (Admin) on 22 Oct 2020, 12:15
