Low Profile Flush Bolt
Only %1 left
The Low Profile Flush Bolt is ideal for use with the P C Henderson Securefold Pro, Soltaire and Imperial door hardware systems. The flush bolt can also be used for french door systems. Suitable for timber doors, we offer lockable and non lockable options, inward and outward openings and four stunning finishes.
- Choose from satin, gold, black or chrome (polished)
- Available in four different lengths
- Suitable for timber doors
- Locking and non locking options
SKU:
FB190 and FB450 and FB600
From
£68.70
| Document | Name | File size | |
|---|---|---|---|
|
Securefold Pro Fitting Instructions (with reference to Flush Bolt Installation) | 5.08 MB | Download |
| Description | DXF | DWG |
|---|
FB190 Flush Bolt |
||||
| FB190 Flush Bolt | 120.65 KB | 30.67 MB | 13.62 MB | |
FB190L Flush Bolt |
||||
| FB190L Flush Bolt | 126.33 KB | 30.70 MB | 13.62 MB | |
FB190N Flush Bolt |
||||
| FB190N Flush Bolt | 123.38 KB | 30.68 MB | 13.62 MB | |
FB190NL Flush Bolt |
||||
| FB190NL Flush Bolt | 128.23 KB | 30.71 MB | 13.63 MB | |
FB190I Flush Bolt |
||||
| FB190I Flush Bolt | 104.62 KB | 30.15 MB | 13.49 MB | |
FB190IL Flush Bolt |
||||
| FB190IL Flush Bolt | 109.21 KB | 30.18 MB | 13.50 MB | |
FB450 Flush Bolt |
||||
| FB450 Flush Bolt | 119.75 KB | 31.13 MB | 13.73 MB | |
FB450L Flush Bolt |
||||
| FB450L Flush Bolt | 123.15 KB | 31.16 MB | 13.74 MB | |
FB600 Flush Bolt |
||||
| FB600 Flush Bolt | 120.92 KB | 31.11 MB | 13.73 MB | |
FB600L Flush Bolt |
||||
| FB600L Flush Bolt | 124.19 KB | 31.14 MB | 13.73 MB | |
Solid brass flushbolts suitable for both sliding and folding door systems:
- Ideal for use with Securefold Pro, Soltaire and Imperial
- Low profile slide mechanism for neat fitting to door
- Available in both inward and outward opening versions
- Wide slider for ease of opening and closing
- Four colour finishes available to suit the rest of your door hardware
- Easy to install
The low profile flush bolt has been designed with security in mind and provides a solid bolt with a wide slider across the width of the front. Supplied with low profile keys that enables you to close your doors without causing any damage.
Selection of Finishes

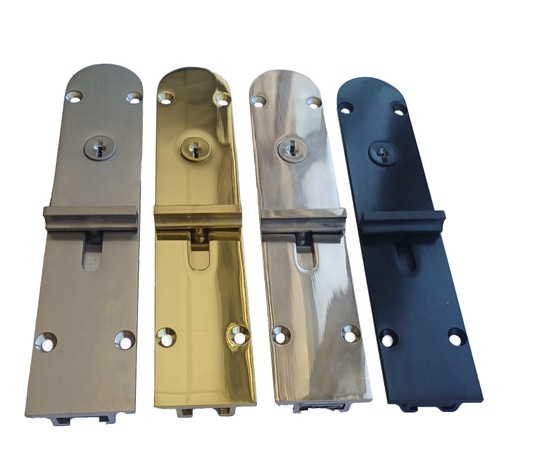

Choose from a range of finishes to suit the look of your door system. We offer a contemporary look with sleek satin black, a classic satin silver, a polished reflective chrome and a traditional polished gold.
Configurations for Door Sizes
To suit your door size, we offer the low profile flush bolt in four different sizes. Choose from 190mm, 450mm, 600mm and 1000mm.
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Max. Door Weight | 250kg |
| Fire Rating | Not fire rated |
| Door Material | Wood |
| Situation | Interior/Exterior |
| Application | Residential/Commercial |
| No. of Doors | 6 |
