Evolve
Automated sliding door kit for wooden, metal or glass doors weighing up to 80kg
| Kit Code | No of Doors | Door Material | Track Length | Door/Glass Thickness Range | Min. Door Width | Max. Door Width | Clear Opening | Max. Door Weight | Application |
|---|---|---|---|---|---|---|---|---|---|
| E80/20 | 1 | Wood/Metal | 2000mm | 30 - 50mm | 675mm | 1100mm | 1020mm | 80kg | Interior |
| E80/30 | 1 | Wood/Metal | 3000mm | 30 - 50mm | 675mm | 1600mm | 1520mm | 80kg | Interior |
| 10/E80/20 | 1 | Glass | 2000mm | 10mm | 760mm | 1100mm | 1020mm | 80kg | Interior |
| 10/E80/30 | 1 | Glass | 3000mm | 10mm | 760mm | 1600mm | 1520mm | 80kg | Interior |
| 12/E80/20 | 1 | Glass | 2000mm | 12mm | 760mm | 1100mm | 1020mm | 80kg | Interior |
| 12/E80/30 | 1 | Glass | 3000mm | 12mm | 760mm | 1600mm | 1520mm | 80kg | Interior |
| ESIM80/40 | 2 | Wood/Metal | 4000mm (2 x 2000mm) | 30 - 50mm | 675mm | 1058mm | 2035mm | 40kg (per door) | Interior |
| 10/E80SIM/40 | 2 | Glass | 4000mm (2 x 2000mm) | 10mm | 760mm | 1058mm | 2035mm | 40kg (per door) | Interior |
| 12/E80SIM/40 | 2 | Glass | 4000mm (2 x 2000mm) | 12mm | 760mm | 1058mm | 2035mm | 40kg (per door) | Interior |
| Document | Name | File size | |
|---|---|---|---|
|
Evolve Motor and Wiring Fitting Instructions | 1.21 MB | Download |
|
|
Evolve Fitting Instructions | 1.63 MB | Download |
|
|
Evolve SIM Fitting Instructions | 1.70 MB | Download |
|
|
Evolve Glass Fitting Instructions | 1.79 MB | Download |
|
|
Evolve Glass SIM Fitting Instructions | 1.76 MB | Download |
|
|
P C Henderson Case Study - Evolve - Mobility Access Improvement Project | 1.47 MB | Download |
|
|
Evolve Datasheet | 419.56 KB | Download |
|
|
P C Henderson Case Study - Evolve - Home Future Proof Project | 1.82 MB | Download |
| Description | DXF | DWG |
|---|
EVOLVE 80 GLASS SIM WEB IMAGE |
||||
| EVOLVE 80 GLASS SIM WEB IMAGE | 65.75 KB | 1.05 MB | 195.85 KB | |
EVOLVE 80 GLASS SINGLE LEAF WEB IMAGE |
||||
| EVOLVE 80 GLASS SINGLE LEAF WEB IMAGE | 52.14 KB | 1.06 MB | 254.27 KB | |
EVOLVE 80 SIM WEB IMAGE |
||||
| EVOLVE 80 SIM WEB IMAGE | 59.40 KB | 1.04 MB | 242.70 KB | |
EVOLVE 80 TIMBER SINGLE LEAF WEB IMAGE |
||||
| EVOLVE 80 TIMBER SINGLE LEAF WEB IMAGE | 48.58 KB | 1.05 MB | 251.46 KB | |
Evolve incorporates our popular Soltaire 120 to create an exceptionally smooth and reliable automated sliding door system for residential and light commercial applications.
- Allows for improved mobility access between rooms
- Doors can be operated by the push of a button, remote control or by activation of a movement sensor
- Features include a push and go mechanism, configurable closing speeds and an auto closing delay timer
Easy Accessibility
Designed without the need for a floor channel, Evolve provides a completely clear walkway between rooms – making the system an ideal solution to improve mobility access.
Door Activation
Sliding doors can open at the push of a button, remote control or by activation of a movement sensor – offering the utmost in sophistication and convenience.
Obstacle Detection
The system has been designed with obstacle detection in both directions to allow travelling doors to stop safety when an obstacle is detected.
Your Evolve Kit includes:
- Track (120/2000 or 120/3000)
- Hangers (51/120/SS) or Glass Clamps
- Floor Guide (101SS or 8-12/SN)
- Track Stops (HH4/SS)
- Toothed Belt
- Belt Clamp
- Tension Wheel
- Face Fixed Brackets
- Motor (1.5m cable length)
- 24V Transformer
9 Kits Available

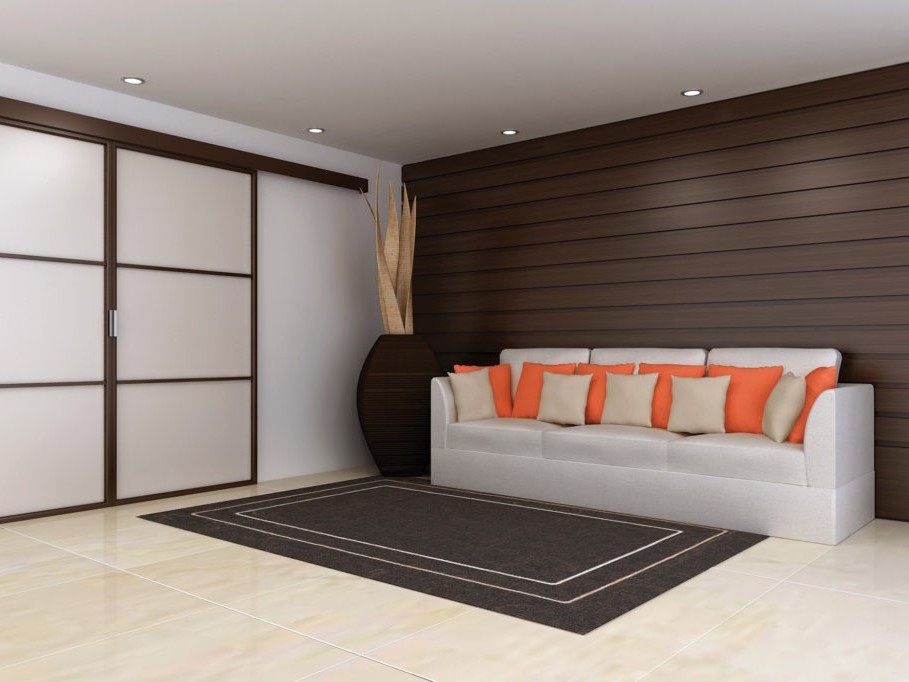

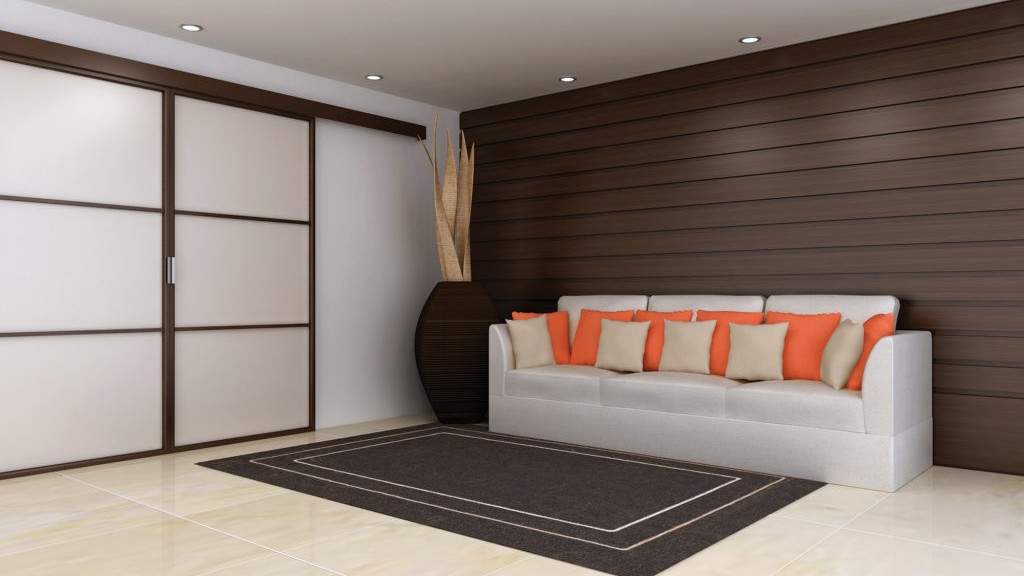

Catering for doors weighing up to 80kg, the versatile system is available in 9 different kit packs to cater for wooden, metal or glass doors in single panel or biparting door applications with simultaneous action.
Configurable Options
Evolve can be configured by closing speed and auto closing delay time to suit different applications. In the event of no electricity, Evolve can also be operated manually.
Accessories

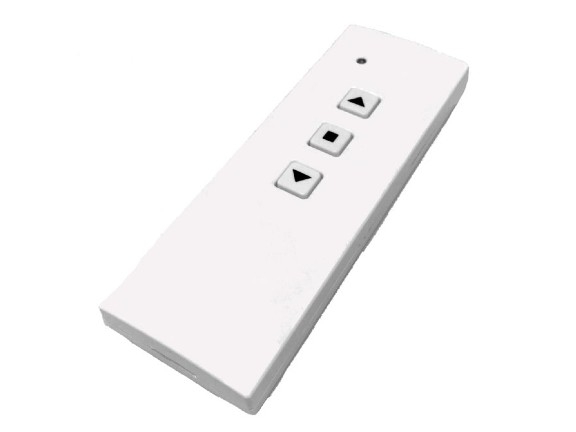

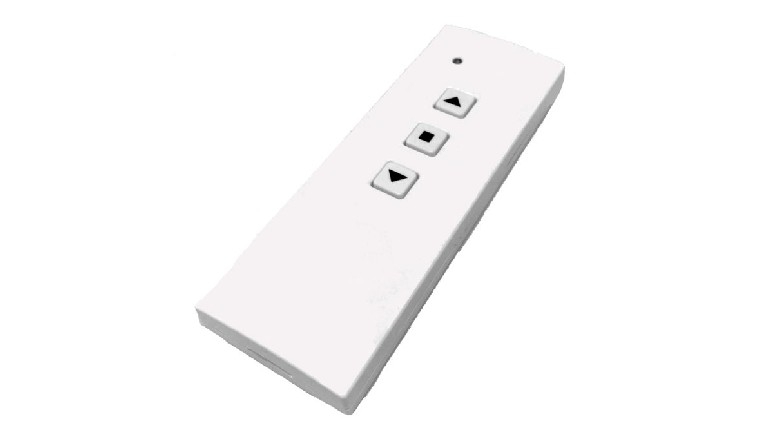

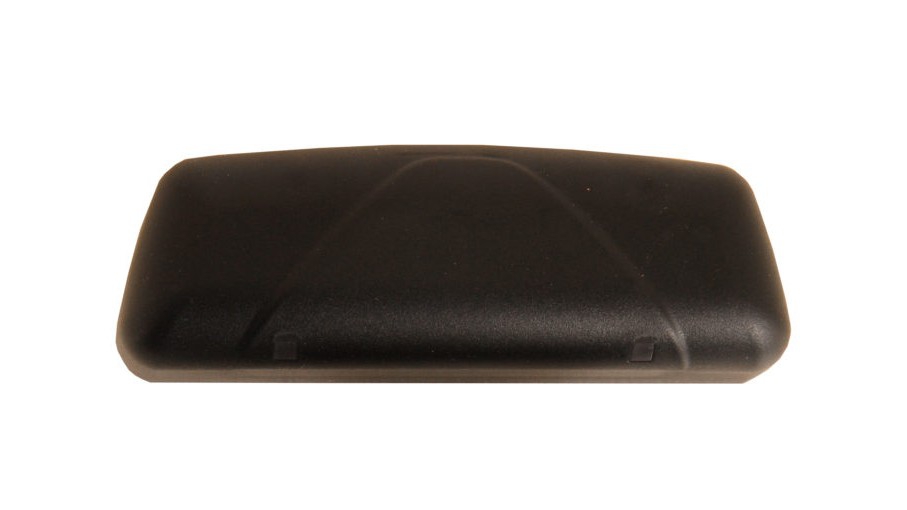

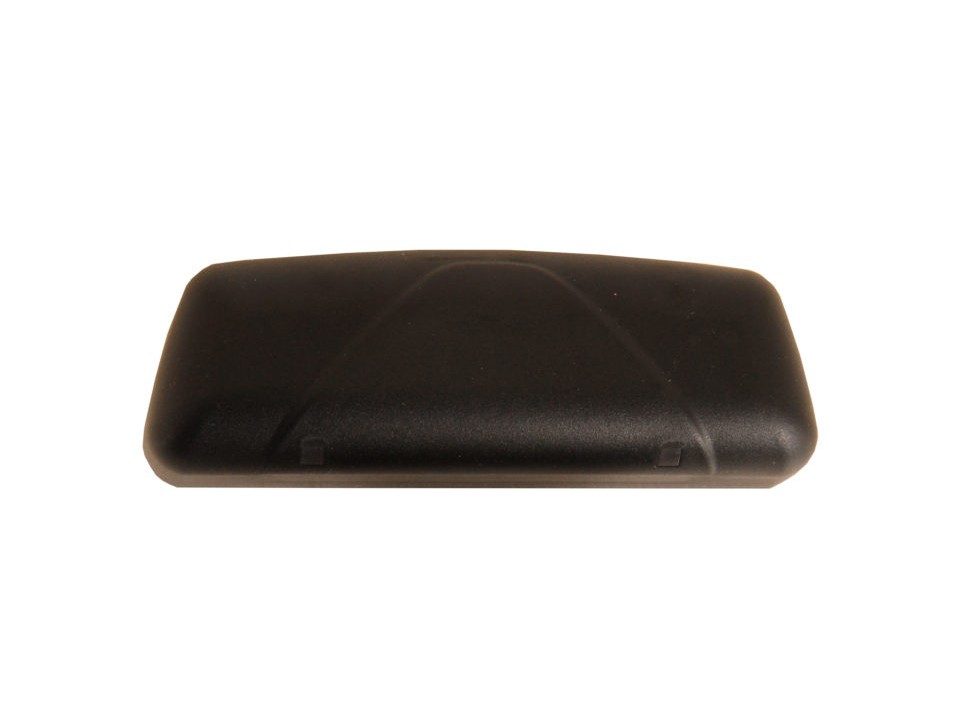

The systems comes with two wall mounted control panels as standard or the kit can be upgraded with an optional remote control kit or motion sensor
More Information
| Fire Rated (Yes/No) | No |
|---|
