Bottom rolling system for sliding patio doors weighing up to 200kg
Product Type | Product Code | Description | Track Length | Max Door Width | Door Thickness Range | Max Door Weight | Door Material |
---|---|---|---|---|---|---|---|

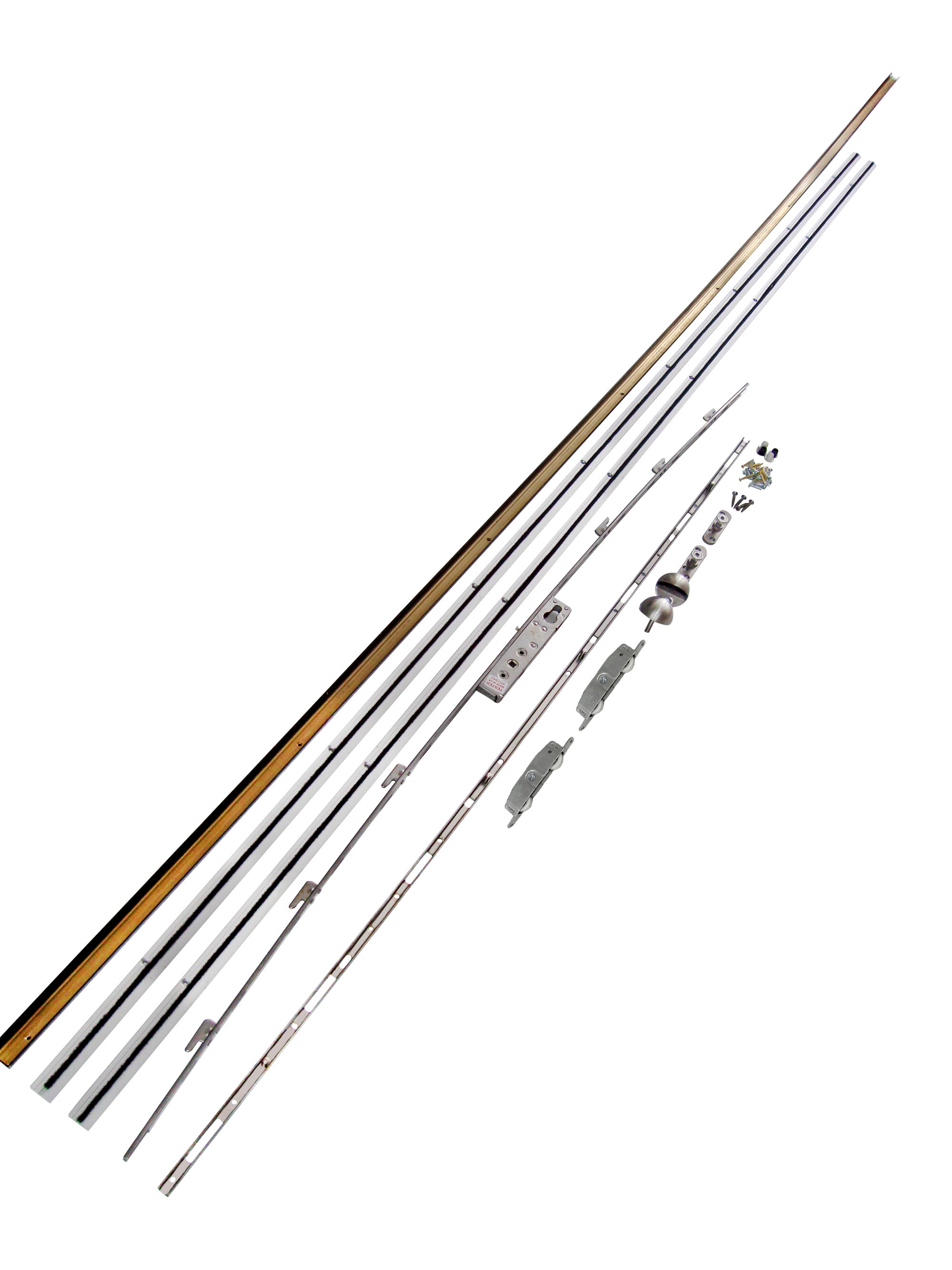

Imperial Patio Kits | IMPATIO100/L | Locking | 3000mm | 1500mm | 40-56mm | 100kg | Wood |
Imperial Patio Kits | IMPATIO100/NL | Non Locking | 3000mm | 1500mm | 40-56mm | 100kg | Wood |
Imperial Patio Kits | IMPATIO/L | Locking | 3000mm | 1500mm | 40-56mm | 200kg | Wood |
Imperial Patio Kits | IMPATIO/NL | Non Locking | 3000mm | 1500mm | 40-56mm | 200kg | Wood |
Imperial Specified | - | - | N/A | 3000mm | 40-56mm | 200kg | Wood |
Description | DXF | DWG |
---|
94X - CHANNEL LVL A |
||||
94X - CHANNEL LVL A | 55.71 KB | 294.59 KB | 150.17 KB | |
1 SS - BRACKET LVL A |
||||
1 SS - BRACKET LVL A | 67.10 KB | 417.88 KB | ||
106HSS 94 - GUIDE LVL A |
||||
106HSS 94 - GUIDE LVL A | 66.17 KB | 360.02 KB | 268.90 KB | |
113SS 94 - GUIDE LVL A |
||||
113SS 94 - GUIDE LVL A | 85.54 KB | 321.07 KB | 258.05 KB | |
200SS - BOTTOM ROLLER LVL A |
||||
200SS - BOTTOM ROLLER LVL A | 94.21 KB | 293.90 KB | ||
261SS 900 - GUIDE LVL A |
||||
261SS 900 - GUIDE LVL A | 93.62 KB | 385.46 KB | 264.95 KB | |
89SS - CHANNEL LVL A |
||||
89SS - CHANNEL LVL A | 26.38 KB | 456.51 KB | 125.70 KB | |
900AN - CHANNEL LVL A |
||||
900AN - CHANNEL LVL A | 83.25 KB | 303.29 KB | 253.53 KB | |
915A - BOTTOM RAIL LVL A |
||||
915A - BOTTOM RAIL LVL A | 93.57 KB | 305.98 KB | 254.63 KB | |
915A - IMPERIAL 100 BOTTOM ROLLING GUIDE 106HSS LVL A |
||||
915A - IMPERIAL 100 BOTTOM ROLLING GUIDE 106HSS LVL A | 59.81 KB | 2.99 MB | 959.37 KB | |
915A - IMPERIAL 100 BOTTOM ROLLING GUIDE 113SS LVL A |
||||
915A - IMPERIAL 100 BOTTOM ROLLING GUIDE 113SS LVL A | 2.86 MB | 921.62 KB | ||
915B - BOTTOM RAIL LVL A |
||||
915B - BOTTOM RAIL LVL A | 93.57 KB | 305.98 KB | 254.62 KB | |
915B - IMPERIAL 200 BOTTOM ROLLING FACE FIXED LVL A |
||||
915B - IMPERIAL 200 BOTTOM ROLLING FACE FIXED LVL A | 77.13 KB | 2.80 MB | 898.85 KB | |
915B - IMPERIAL 200 BOTTOM ROLLING SOFFIT FIXED LVL A |
||||
915B - IMPERIAL 200 BOTTOM ROLLING SOFFIT FIXED LVL A | 59.81 KB | 2.81 MB | 904.67 KB | |
94SC - CHANNEL LVL A |
||||
94SC - CHANNEL LVL A | 26.64 KB | 321.53 KB | 153.93 KB | |
DS200SS - STOP LVL A |
||||
DS200SS - STOP LVL A | 87.94 KB | 326.46 KB | 259.49 KB | |
HH2SS - STOP LVL A |
||||
HH2SS - STOP LVL A | 86.20 KB | 364.74 KB | 269.24 KB |
Imperial offers a durable sliding door hardware system for the movement of sliding patio doors. Suitable for wooden doors weighing up to 200kg each, Imperial has been designed as a bottom rolling system.
As a bottom rolling system, Imperial has been designed to allow the weight of the doors to be taken by the floor and is therefore ideal for applications whereby there is insufficient structural support.
To make specification as easy as possible, our Imperial system is available in kit pack format and includes everything you need to hang the doors. The kit packs are available in both locking and non locking options depending on your application. Alternatively, Imperial can be specified as individual components to create a bespoke sliding door solution for unique and complex projects.
Imperial is extremely easy to install and as such has an installation video available which guides you through the fitting process.
Imperial has been designed with a range of high quality components options.
The system is available with a choice of two bottom rollers. For doors up to 100kg, our 100N nylon bottom roller has been designed for use with our 915A aluminium rail for a smooth and silent operation. For heavier doors weighing up to 200kg, our 200SS bottom roller features stainless steel wheels and should be used with our 915B bronze rail.
A range of top guide rollers are also available to suit various applications - choose between top plate or corner plate fixing options.
Available in kit pack format, Imperial can cater for both locking and non locking applications. The kit packs include everything you need to install the system.
Imperial is extremely easy to install and has an accompanying installation video to guide you through the process.
Imperial has been tested to more than 100,000 cycles - providing you with the peace of mind to know we are offering a robust sliding hardware system.
Shop our range of spare parts and components for use with the Imperial
View similar products to Imperial
