Tangent Round the Corner
Top-hung door system for round the corner applications
SKU:
tangent-round-the-corner
Contact a member of our sales team to enquire about this product
| Product | Max. Door Width | Max. Door Height | Door Thickness Range | Max. Door Weight | Door Material | Application |
|---|---|---|---|---|---|---|
| Tangent RTC 290 | 900mm | 2400mm | 35 - 50mm | 35kg | Wood/Metal | Interior/Exterior |
| Tangent RTC 301 | 900mm | 3300mm | 45 - 55mm | 55kg | Wood/Metal | Interior/Exterior |
| Tangent RTC 301H | 900mm | 3600mm | 45 - 55mm | 70kg | Wood/Metal | Interior/Exterior |
| Document | Name | File size | |
|---|---|---|---|
|
Tangent Round the Corner Quality Certificate | 151.83 KB | Download |
|
|
Tangent 301 Round the Corner Datasheet | 1.06 MB | Download |
|
|
Tangent Round the Corner 290 Datasheet | 1.05 MB | Download |
|
|
P C Henderson Case Study - Tangent Round the Corner - Welsh Highland Railway | 1.54 MB | Download |
| Description | DXF | DWG |
|---|
89 - CHANNEL LVL A |
||||
| 89 - CHANNEL LVL A | 45.38 KB | 293.96 KB | 251.04 KB | |
1A 290 - BRACKET LVL A |
||||
| 1A 290 - BRACKET LVL A | 53.36 KB | 375.16 KB | 273.99 KB | |
1A 301 - BRACKET LVL A |
||||
| 1A 301 - BRACKET LVL A | 57.27 KB | 430.05 KB | 285.79 KB | |
290 - TANGENT (RC) LVL A |
||||
| 290 - TANGENT (RC) LVL A | 107.47 KB | 3.60 MB | 1.02 MB | |
290 - TRACK LVL A |
||||
| 290 - TRACK LVL A | 46.50 KB | 325.05 KB | 258.13 KB | |
301 - TRACK LVL A |
||||
| 301 - TRACK LVL A | 116.14 KB | 748.66 KB | ||
301(H) - TANGENT (RC) LVL A |
||||
| 301(H) - TANGENT (RC) LVL A | 127.57 KB | 3.62 MB | 1.01 MB | |
301H - TRACK LVL A |
||||
| 301H - TRACK LVL A | 44.64 KB | 334.94 KB | 254.59 KB | |
4RX 301TS - BRACKET LVL A |
||||
| 4RX 301TS - BRACKET LVL A | 57.44 KB | 528.06 KB | 311.08 KB | |
600B - TRACKCURVE LVL A |
||||
| 600B - TRACKCURVE LVL A | 59.62 KB | 392.81 KB | 276.90 KB | |
600BH - TRACKCURVE LVL A |
||||
| 600BH - TRACKCURVE LVL A | 59.65 KB | 392.87 KB | 276.91 KB | |
600K - TRACKCURVE LVL A |
||||
| 600K - TRACKCURVE LVL A | 59.83 KB | 441.76 KB | 288.58 KB | |
62A - HANGER LVL B |
||||
| 62A - HANGER LVL B | 108.13 KB | 1.81 MB | 1.09 MB | |
62K - HANGER LVL A |
||||
| 62K - HANGER LVL A | 84.99 KB | 1.72 MB | 618.44 KB | |
63A - HANGER LVL A |
||||
| 63A - HANGER LVL A | 71.56 KB | 1.23 MB | 495.30 KB | |
63K - HANGER LVL A |
||||
| 63K - HANGER LVL A | 71.56 KB | 1.26 MB | 501.61 KB | |
65 - HINGE LVL A |
||||
| 65 - HINGE LVL A | 65.70 KB 65.70 KB | 773.92 KB 773.92 KB | 369.90 KB 369.90 KB | |
67 89 - GUIDE LVL A |
||||
| 67 89 - GUIDE LVL A | 79.40 KB | 1.29 MB | 510.56 KB | |
67 97 - GUIDE LVL A |
||||
| 67 97 - GUIDE LVL A | 79.30 KB | 1.26 MB | 502.71 KB | |
68 89 - GUIDE LVL A |
||||
| 68 89 - GUIDE LVL A | 65.16 KB | 761.90 KB | 371.04 KB | |
68 97 - GUIDE LVL A |
||||
| 68 97 - GUIDE LVL A | 66.43 KB | 816.85 KB | 385.81 KB | |
97 - CHANNEL LVL A |
||||
| 97 - CHANNEL LVL A | 44.89 KB | 294.85 KB | 251.70 KB | |
- Three systems available to cater for door leaves weighing up to 80kg
- Doors stack clear of the opening and park along the adjacent side wall
- Ideal for applications where a bunched unit of parked leaves would be impractical
- Deluxe fittings available in polished or satin anodised aluminium finishes
- Doors can slide to one or both sides and can cover any width of opening by using any number of units on a single track

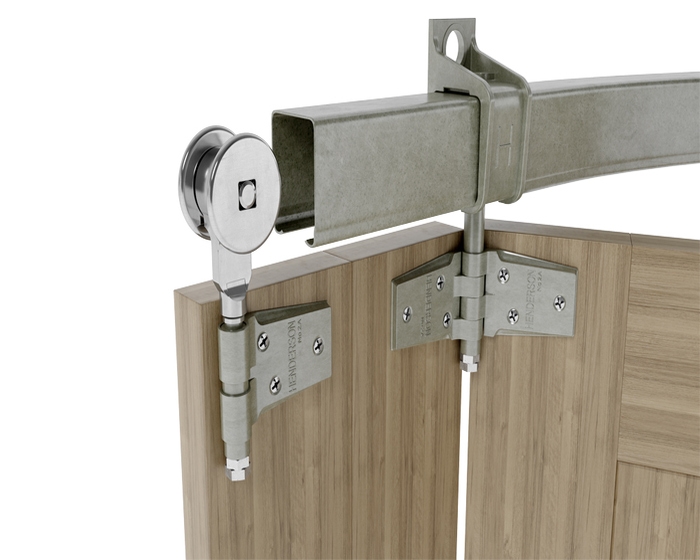

Tangent Round the Corner is a robust top hung door system for round the corner residential, commercial or light industrial wooden or metal doors. The doors may be panelled, flushed or glazed and can weigh up to 35kg, 55kg or 70kg each. The system is particularly suited where a bunched unit of parked panels would be impractical. Only 3 to 5 panels should be hinged in 1 unit, but any number of units may be used to suit panels from a minimum width of 711mm to a maximum of 900mm.
More Information
| Application | Residential/Commercial |
|---|---|
| Situation | Interior/Exterior |
| No. of Doors | 4+ |
| Door Material | Wood or Metal |
| Max. Door Weight | 70kg |
| Max. Door Width | 900mm |
| Door Thickness Range | 33-55mm |
| Max. Door Height | 3600mm |
Q&A
Q&A
Question:
Why must the panels be a minimum width of 711mm?
Question by: Steven Brady on 26 Mar 2021, 00:00
Answer:
Good morning, Â If the doors were smaller than 711mm wide, the hangers would be installed too close together to travel the circumference of the curve. Â Thanks, Â Kate Marketing Executive
