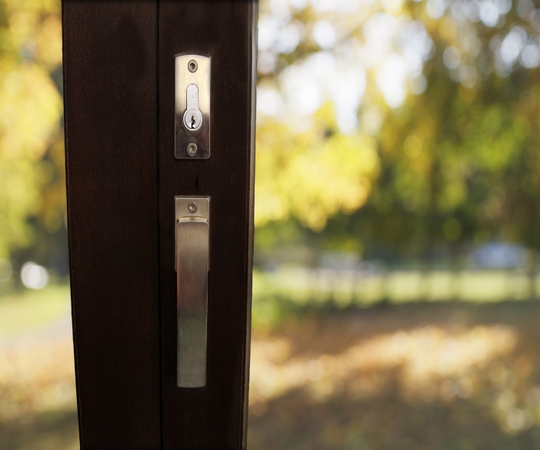

Twinbolt - New and Improved
Only %1 left
Locking system for use with Securefold and Securefold Bottom Rolling
- Locks the door from the inside of the system
- Provides two points of locking using top and bottom throw rods
SKU:
twinbolt-new-and-improved
From
£294.24
| Short Code | For Use With | Door Thickness Range | Max. Door Height |
|---|---|---|---|
| TB/SF | Securefold 100 - mortice and non mortice | 56 - 68mm | 3300mm |
| TB/SFM | Securefold 100 - mortice square | 56 - 68mm | 3300mm |
| TB/SFBR | Securefold Bottom Rolling - morticeand non mortice | 56 - 68mm | 3000mm |
| TB/SF150 | Securefold 150 | 56 - 68mm | 4000mm |
| Document | Name | File size | |
|---|---|---|---|
|
Twinbolt Fitting Instructions | 1.88 MB | Download |
|
|
Twinbolt Fitting Instructions | 5.71 MB | Download |
|
|
Twinbolt Datasheet | 619.99 KB | Download |
|
|
Twinbolt Data Sheet | 542.72 KB | Download |
| Description | DXF | DWG |
|---|
TWINBOLT SF150 NON MORTICE |
||||
| TWINBOLT SF150 NON MORTICE | 52.23 KB | 851.84 KB | 159.82 KB | |
TWINBOLT SF50-100 MORTICE |
||||
| TWINBOLT SF50-100 MORTICE | 52.00 KB 52.00 KB | 996.29 KB | 193.18 KB 193.18 KB | |
TWINBOLT SF50-100 NON MORTICE |
||||
| TWINBOLT SF50-100 NON MORTICE | 53.00 KB | 2.77 MB | 528.43 KB | |
TWINBOLT SFBR MORTICE |
||||
| TWINBOLT SFBR MORTICE | 54.11 KB | 1001.53 KB | 189.90 KB | |
TWINBOLT SFBR NON MORTICE |
||||
| TWINBOLT SFBR NON MORTICE | 52.25 KB | 2.80 MB | 532.59 KB | |
- Top lock rod is easily adjusted to suit standard and non standard door heights
- Impressive 22mm lock throw range
- Optional extras include Twinbolt handle and Routing Cover Strip
- The new and improved Twinbolt locking system has been designed for use with P C Henderson’s Securefold range of folding door hardware.
Locking System
As an alternative to flush bolts, Twinbolt features top and bottom throw rods which are operated by one simple turn to engage two points of locking. The kit includes lock rods, connecting pins, shoot bolts, cover plate, lock box and pin location blocks.
Accessories
A number of accessories are available to enhance the system including a routing cover strip (available in black, white and brown) and a satin handle kit to complete the system (please see accessories).
Please note: This is a made to order item, delivery date will be provided upon order confirmation.
More Information
| Fire Rated (Yes/No) | No |
|---|
