Folding door hardware for interior doors weighing up to 25kg and 40kg
Product | Order Code | Number of Doors | Track Length | Max Door Height | Max Door Width | Door Thickness Range | Max Door Weight | Door Material | Application |
---|---|---|---|---|---|---|---|---|---|
Husky 25 | HF25/12 | 2 | 1234mm | 2400mm | 610mm | 20-44mm | 25kg | Wood | Interior |
Husky 25 | HF25/24 | 4 | 2458mm | 2400mm | 610mm | 20-44mm | 25kg | Wood | Interior |
Husky 40 | HF40/15 | 2 | 1538mm | 2700mm | 762mm | 20-44mm | 40kg | Wood | Interior |
Husky 40 | HF40/30 | 4 | 3066mm | 2700mm | 762mm | 20-44mm | 40kg | Wood | Interior |
Description | DXF | DWG |
---|
280 - TRACK LVL A |
||||
280 - TRACK LVL A | 45.90 KB | 300.96 KB | 252.91 KB | |
94X - CHANNEL LVL A |
||||
94X - CHANNEL LVL A | 55.71 KB | 294.59 KB | 150.17 KB | |
282_S HINGE - LEVEL A |
||||
282_S HINGE - LEVEL A | 137.14 KB | 148.67 KB | ||
289B - BOTTOM PIVOT LVL A |
||||
289B - BOTTOM PIVOT LVL A | 63.82 KB | 380.76 KB | 171.99 KB | |
106HF 94 - GUIDE LVL A |
||||
106HF 94 - GUIDE LVL A | 59.92 KB | 319.75 KB | 156.26 KB | |
283 - HANGER 40KG LVL A |
||||
283 - HANGER 40KG LVL A | 99.17 KB | 1.79 MB | 534.91 KB | |
283N - HANGER 25KG LVL A |
||||
283N - HANGER 25KG LVL A | 96.50 KB | 1.81 MB | 539.09 KB | |
289T - TOP PIVOT LVL B |
||||
289T - TOP PIVOT LVL B | 92.37 KB | 685.56 KB | 881.53 KB | |
HUSKY FOLDING 25 - FOLDING DOOR GEAR LVL A |
||||
HUSKY FOLDING 25 - FOLDING DOOR GEAR LVL A | 128.92 KB | 3.92 MB | 1.14 MB | |
HUSKY FOLDING 40 - FOLDING DOOR GEAR LVL B |
||||
HUSKY FOLDING 40 - FOLDING DOOR GEAR LVL B | 120.29 KB | 4.20 MB | 710.41 KB |
Folding door hardware for interior doors weighing up to 25kg and 40kg

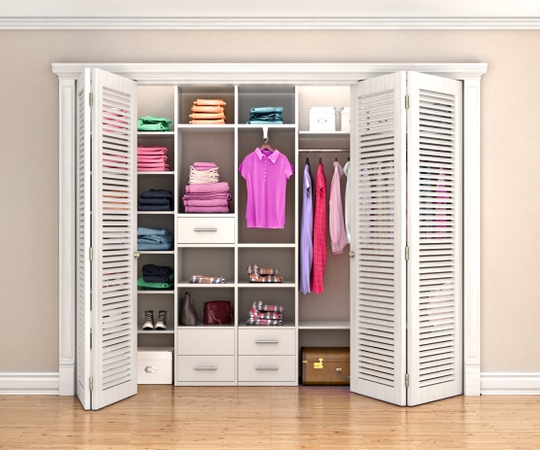

Husky Folding bifold door kit provides a simple and flexible solution for both light and medium weight residential folding partitions. Designed for wooden, wood framed and composite doors, the systems concealed fixings and robust floor gear allow the partitions to stack neatly to one or both sides of the opening.
Husky Folding 25 can support doors weighing up to 25kg and 610mm wide without a floor channel, and the Husky Folding 40 can support doors weighing up to 40kg and 762mm wide, with a floor channel included.
Husky Folding kits are available for 2 or 4 folding doors to one side. For two doors folding each way, extra pivots are required (289B and 289T – please see accessories and spares). A fittings kit is available for applications where additional doors are required. The track can also be cut to length to suit any opening width.
A number of handles and flush pulls are available as optional extras – please see accessories below
