Pacer Endfold
For interior folding doors weighing up to 35kg and 65kg
SKU:
pacer-endfold
Contact a member of our sales team to enquire about this product
| Product | Max. Door Height | Max. Door Width | Door Thickness Range | Door Material | Application | Max. Door Weight |
|---|---|---|---|---|---|---|
| Pacer Endfold 35 | 2700mm | 900mm | 35 - 44mm | Wood | Interior/Exterior | 35kg |
| Pacer Endfold 65 | 2700mm | 900mm | 35 - 44mm | Wood | Interior/Exterior | 65kg |
| Document | Name | File size | |
|---|---|---|---|
|
Pacer Facia Fitting Instructions | 65.12 KB | Download |
|
|
Pacer Interior Endfold Fitting Instructions | 256.57 KB | Download |
|
|
Pacer Endfold Brochure Page | 523.63 KB | Download |
| Description | DXF | DWG |
|---|
94X - CHANNEL LVL A |
||||
| 94X - CHANNEL LVL A | 55.71 KB | 294.59 KB | 150.17 KB | |
1B - BRACKET LVL A |
||||
| 1B - BRACKET LVL A | 59.96 KB | 314.69 KB | 155.89 KB | |
1BX - BRACKET LVL A |
||||
| 1BX - BRACKET LVL A | 62.87 KB | 317.28 KB | 257.21 KB | |
21B - HANGER LVL A |
||||
| 21B - HANGER LVL A | 75.29 KB 75.29 KB | 645.56 KB 645.56 KB | 345.10 KB 345.10 KB | |
21BP - PIVOT SET LVL A |
||||
| 21BP - PIVOT SET LVL A | 76.72 KB | 927.60 KB | 420.44 KB | |
403 2 - HINGE LVL B |
||||
| 403 2 - HINGE LVL B | 84.09 KB | 608.26 KB | 681.50 KB | |
600AN - TRACK LVL A |
||||
| 600AN - TRACK LVL A | 85.96 KB | 325.76 KB | 158.77 KB | |
94T - TRESHOLD LVL A |
||||
| 94T - TRESHOLD LVL A | 78.40 KB | 159.15 KB | ||
21B4 - HANGER LVL B |
||||
| 21B4 - HANGER LVL B | 117.28 KB | 1.45 MB | 1.23 MB | |
21N94 - GUIDE LVL B |
||||
| 21N94 - GUIDE LVL B | 85.06 KB | 581.76 KB | 708.14 KB | |
600 - PACER ENDFOLDING EXTERIOR ALU 65KG LVL A |
||||
| 600 - PACER ENDFOLDING EXTERIOR ALU 65KG LVL A | 110.51 KB | 6.30 MB | 1.81 MB | |
600 - PACER ENDFOLDING INTERIOR 35KG LVL A |
||||
| 600 - PACER ENDFOLDING INTERIOR 35KG LVL A | 72.46 KB | 4.38 MB | 1.28 MB | |
600 - PACER ENDFOLDING INTERIOR 65KG LVL A |
||||
| 600 - PACER ENDFOLDING INTERIOR 65KG LVL A | 87.42 KB | 5.11 MB | 1.48 MB | |
94 - CHANNEL LVL A |
||||
| 94 - CHANNEL LVL A | 44.23 KB | 293.64 KB | 250.93 KB | |
- Available for use with metal and wooden doors
- Both two-wheeled and four-wheeled hangers are available to cover a wide range of applications
- Doors can be hung to the left or the right of an opening or hung as floating units.

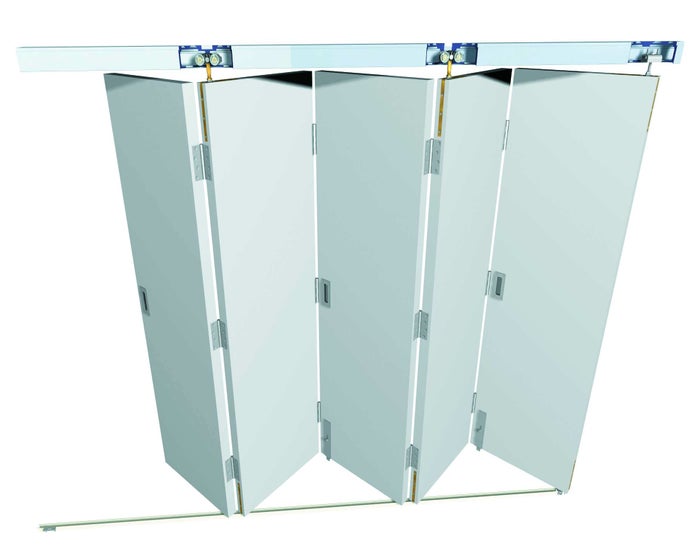

Pacer Endfold is a top hung, medium weight partition door system - perfect for internal residential and commercial applications requiring end folding doors. The system offers both two-wheeled and four-wheeled hangers to cover a wide range of applications. Panels can be hung to the left or right of an opening as well as being hung as floating units. An application using the four-wheeled hanger, with even numbers of panels folding left and right, meeting in the centre of an opening, requires an offset hanger (21BO/4).
More Information
| Fire Rated (Yes/No) | No |
|---|---|
| Product Range | Pacer |
| Location | Internal |
| Application | Residential, Commercial |
| Door Material | Wood |
Q&A
Q&A
Question:
Are you able to do 3 leaves, with the end panel as a swing panel?
Question by: Alexandra Smith on 4 May 2021, 01:00
Answer:
Good morning,Yes, our Pacer Endfold is able to cater for this installation.Many thanks,KateMarketing Executive
Answer by: admin admin (Admin) on 5 May 2021, 09:14
